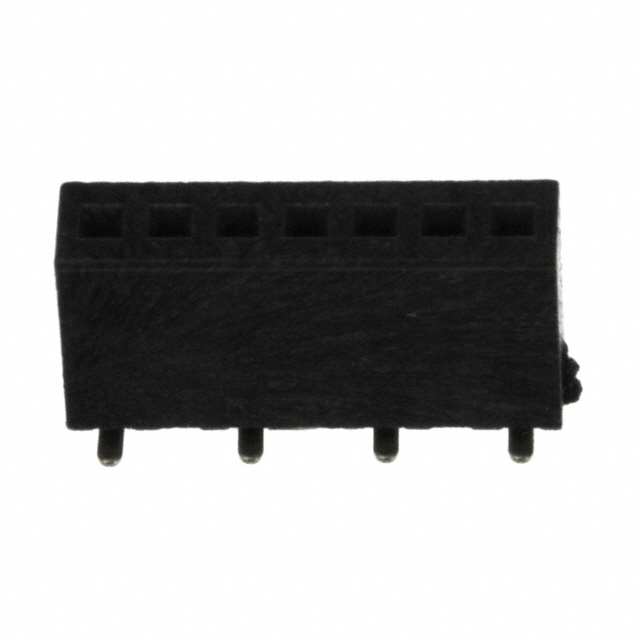

LPPB071NFSC-RC
Or copy the link below:
- Mfr.Part #
- LPPB071NFSC-RC
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 7POS 0.05 GOLD SMD
- Stock
- 39,744
- In Stock ：
- 39,744
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Connector Type :
- Header, Top or Bottom Entry
- Number of Rows :
- 1
- Contact Shape :
- Square
- Pitch - Mating :
- 0.050 1.27mm
- Contact Finish Thickness - Mating :
- Flash
- Mount :
- Surface Mount
- PCB Contact Pattern :
- STAGGERED
- RoHS Status :
- ROHS3 Compliant
- Terminal Pitch :
- 2.54mm
- Packaging :
- Tube
- Operating Temperature :
- -40°C~125°C
- Material Flammability Rating :
- UL94 V-0
- Number Of PCB Rows :
- 2
- Mating Contact Pitch :
- 0.05 inch
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 4 Weeks
- Contact Finish - Mating :
- Gold
- Insulation Color :
- Black
- Fastening Type :
- Push-Pull
- Number of Positions :
- 7
- PCB Contact Row Spacing :
- 2.6924 mm
- Current Rating (Amps) :
- 1A
- Body Breadth :
- 0.084 inch
- Number of Conductors :
- ONE
- Reliability :
- COMMERCIAL
- Termination :
- Solder
- Style :
- Board to Board
- Published :
- 2008
- Insulation Height :
- 0.183 4.65mm
- Contact Type :
- Female Socket
- Reference Standard :
- UL
- Body Length or Diameter :
- 0.365 inch
- Total Number of Contacts :
- 7
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Polarization Key :
- POLARIZED HOUSING
- Mounting Type :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Phosphor Bronze
- Datasheets
- LPPB071NFSC-RC
LPPB071NFSC-RC Documents
1 Rows Header, Top or Bottom Entry Solder Phosphor Bronze Surface Mount Tube Gold Liquid Crystal Polymer (LCP) 7 Positions Female Socket
LPPB071NFSC-RC Overview
It comes in Header, Top or Bottom Entry packaging.The device's mounting type is Surface Mount.In order to package the product, a Tube case is used.The part is mounted by Surface Mount.The device runs in -40°C~125°C Operating Temperature.
LPPB071NFSC-RC Features
LPPB071NFSC-RC Applications
There are a lot of Sullins Connector Solutions
LPPB071NFSC-RC Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
