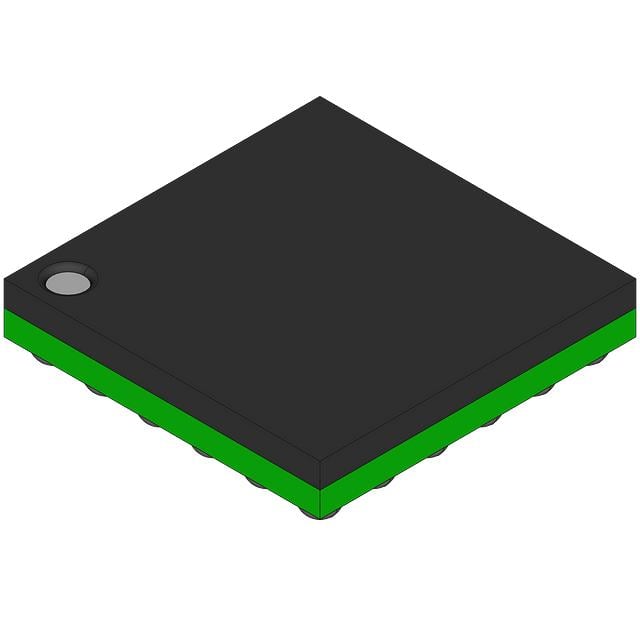

LMV1088RL

Manufacturer :

Texas Instruments

Product Category :

Audio Amplifiers

Operating Temperature (Min) :

-40°C

Surface Mount :

yes

JESD-609 Code :

e1

Supply Voltage-Min (Vsup) :

2.7V

Input Bias Current :

1.2 mA

Length :

3.459mm

Pin Count :

36

ECCN Code :

EAR99

Packaging :

Tape and Reel

Terminal Position :

BOTTOM

Qualification Status :

Not Qualified

Terminal Form :

Ball

Number of Pins :

36

Supply Voltage-Max (Vsup) :

5.5V

Width :

3.459mm

Operating Temperature (Max) :

85°C

RoHS Status :

RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Functions :

1

Power Supply Rejection Ratio (PSRR) :

80 dB

JESD-30 Code :

S-PBGA-B36

Consumer IC Type :

AUDIO AMPLIFIER

Mount :

Surface Mount

Reach Compliance Code :

Compliant

Max Operating Temperature :

85 °C

HTS Code :

8542.33.00.01

Number of Channels :

2

RoHS :

Compliant

Temperature Grade :

Industrial

Min Operating Temperature :

-40 °C

Nominal Supply Current :

1.5 mA

Max Dual Supply Voltage :

5.5 V

Seated Height-Max :

0.675mm

Bandwidth :

22 kHz

Terminal Pitch :

0.5mm

Number of Terminals :

36

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)
