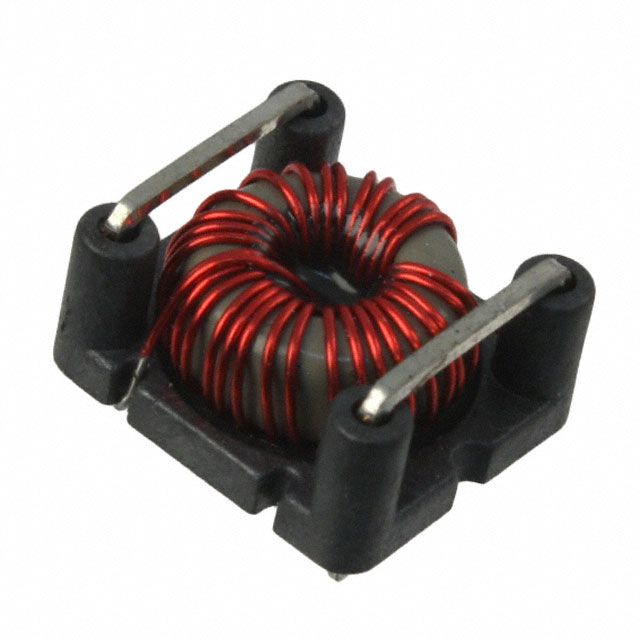

LLST-47

Manufacturer :

API Delevan

Product Category :

Fixed Inductors

Series :

LLST

Shielding :

No

DC Resistance (DCR) :

120mOhm Max

Number of Functions :

1

Mount :

Surface Mount

Lead Free :

Contains Lead

Tolerance :

±15%

Inductor Application :

POWER INDUCTOR

Depth :

11.17mm

Case/Size Code :

4842

Radiation Hardening :

No

Packaging :

Bulk

Max DC Current :

1.45A

Type :

Toroidal

Height :

7.37mm

Terminal Placement :

DUAL ENDED

Operating Temperature :

-40°C~125°C

Construction :

RECTANGULAR

HTS Code :

8504.50.80.00

Number of Terminations :

2

Test Frequency :

1kHz

Published :

2002

Terminal Finish :

Tin/Lead (Sn/Pb)

ECCN Code :

EAR99

Size / Dimension :

0.475Lx0.420W 12.07mmx10.67mm

Material - Core :

Nickel Iron

Termination :

SMD/SMT

Height Seated (Max) :

0.290 7.37mm

Current - Saturation :

1A

Shape/Size Description :

RECTANGULAR PACKAGE

RoHS Status :

Non-RoHS Compliant

Terminal Shape :

ONE SURFACE

Current Rating :

1.45A

Pbfree Code :

No

Frequency - Self Resonant :

10MHz

JESD-609 Code :

e0

Inductance :

47μH

Mounting Type :

Surface Mount

Package / Case :

Nonstandard
