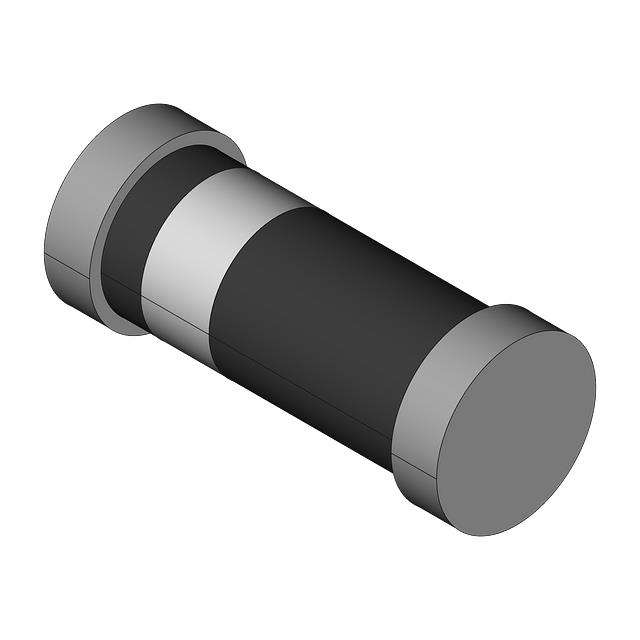

LL4148
Or copy the link below:
- Mfr.Part #
- LL4148
- Manufacturer
- Fairchild Semiconductor
- Package / Case
- DO-213AC, MINI-MELF, SOD-80
- Datasheet
- Download
- Description
- RECTIFIER DIODE, 0.2A, 100V, DO-
- Stock
- 14,643
- In Stock ：
- 14,643
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Fairchild Semiconductor
- Product Category :
- Diodes - Rectifiers - Single
- Mount :
- Surface Mount
- Current - Reverse Leakage @ Vr :
- 25nA @ 20V
- Max Surge Current :
- 2A
- Peak Non-Repetitive Surge Current :
- 2A
- Voltage - Forward (Vf) (Max) @ If :
- 1V @ 10mA
- Current - Average Rectified (Io) :
- 200mA
- Voltage :
- 100V
- Supplier Device Package :
- SOD-80
- Packaging :
- Tape and Reel (TR)
- Package / Case :
- DO-213AC, MINI-MELF, SOD-80
- Max Forward Surge Current (Ifsm) :
- 2A
- Operating Temperature - Junction :
- -55°C~175°C
- Mounting Type :
- Surface Mount
- Speed :
- Small Signal =< 200mA (Io), Any Speed
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Power Dissipation :
- 500mW
- Height :
- 1.5mm
- Max Operating Temperature :
- 175°C
- REACH SVHC :
- No SVHC
- Reverse Recovery Time :
- 4 ns
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Capacitance @ Vr, F :
- 4pF @ 0V 1MHz
- Number of Pins :
- 2
- Min Operating Temperature :
- -55°C
- Base Part Number :
- LL4148
- Average Rectified Current :
- 200mA
- Forward Voltage :
- 1V
- RoHS Status :
- ROHS3 Compliant
- Max Repetitive Reverse Voltage (Vrrm) :
- 100V
- Current :
- 2A
- Length :
- 3.6mm
- Lead Free :
- Lead Free
- Radiation Hardening :
- No
- Diode Type :
- Standard
- Published :
- 2013
- Peak Reverse Current :
- 25nA
- Width :
- 1.5mm
- Max Reverse Voltage (DC) :
- 100V
- Factory Lead Time :
- 20 Weeks
- Recovery Time :
- 4 ns
- Reverse Voltage :
- 100V
- Element Configuration :
- Single
- Contact Plating :
- Tin
- Weight :
- 4.535924g
- Forward Current :
- 200mA
- Voltage - DC Reverse (Vr) (Max) :
- 100V
- Datasheets
- LL4148
Standard Diode Rectifier Small Signal =< 200mA (Io), Any Speed 1V @ 10mA -55°C~175°C 25nA @ 20V Tape & Reel (TR) DO-213AC, MINI-MELF, SOD-80 Surface Mount
LL4148 Overview
An appropriate reverse voltage is 100V.Devices with this rating have an average rectified current of 200mA volts.An unwanted side effect of this electronic or electrical device is that it produces 500mW heat.200mA is the maximum value of forward current.There can be no surge current above 2A.Using the data chart, the peak reverse is 25nA in the datasheets.
LL4148 Features
an average rectified current of 200mA volts
the peak reverse is 25nA
LL4148 Applications
There are a lot of ON Semiconductor
LL4148 applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
