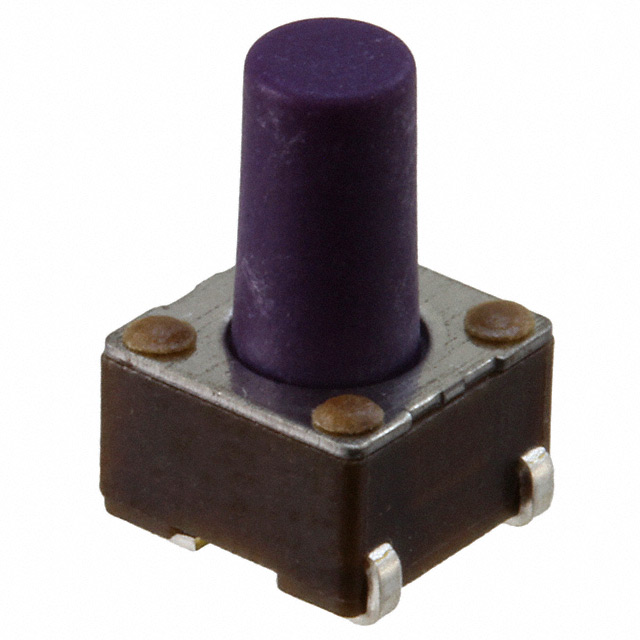

LL3301BF065QJ
Or copy the link below:
- Mfr.Part #
- LL3301BF065QJ
- Manufacturer
- E-Switch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 12V
- Stock
- 2,784
- In Stock ：
- 2,784
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- Operating Force :
- 65gf
- Contact Current(DC)-Max :
- 0.05A
- Mount :
- Surface Mount
- Contact Plating :
- Silver
- Outline :
- 6.00mm x 6.00mm
- Length :
- 6mm
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- Switch Function :
- Off-Mom
- Switch Type :
- KEYPAD SWITCH
- Termination Style :
- J Lead
- Current Rating :
- 50mA
- Contact Bounce Time-Max :
- 10ms
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2006
- Throw Configuration :
- SPST
- HTS Code :
- 8536.50.90.40
- Actuator Type :
- Standard
- Circuit :
- SPST-NO
- Width :
- 6mm
- Height :
- 9.5mm
- Switch Travel :
- 0.25mm
- Series :
- LL3301
- RoHS Status :
- ROHS3 Compliant
- Operating Temperature :
- -30°C~85°C
- Actuator Orientation :
- Top Actuated
- Number of Switches :
- 1
- Illumination :
- Non-Illuminated
- Packaging :
- Bulk
- JESD-609 Code :
- e4
- Factory Lead Time :
- 11 Weeks
- Voltage - Rated AC :
- 12V
- ECCN Code :
- EAR99
- Actuator Height off PCB, Vertical :
- 9.50mm
- Mounting Type :
- Surface Mount
- Contact (DC) Max Rating R Load :
- .05A@12VDC
- Datasheets
- LL3301BF065QJ
