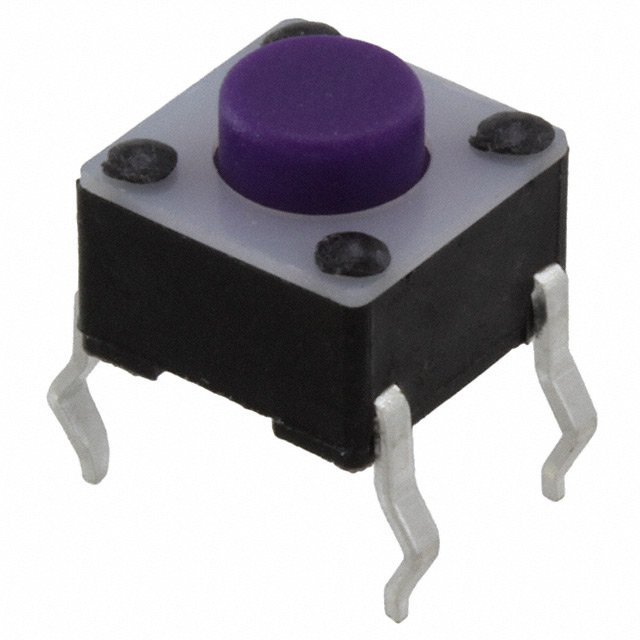

LL1105AF065Q
Or copy the link below:
- Mfr.Part #
- LL1105AF065Q
- Manufacturer
- E-Switch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 12V
- Stock
- 6,892
- In Stock ：
- 6,892
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- Operating Temperature :
- -30°C~85°C
- Body Length or Diameter :
- 6mm
- Body Breadth :
- 6 mm
- RoHS Status :
- ROHS3 Compliant
- Switch Function :
- Off-Mom
- Throw Configuration :
- SPST
- Packaging :
- Bulk
- Contact (DC) Max Rating R Load :
- .05A@12VDC
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- HTS Code :
- 8536.50.90.40
- Body Height :
- 3.6mm
- Lead Free :
- Lead Free
- Switch Travel :
- 0.25mm
- Contact Current(DC)-Max :
- 0.05A
- Max Voltage Rating (DC) :
- 12V
- JESD-609 Code :
- e4
- Mount :
- Through Hole
- Series :
- LL1105
- Circuit :
- SPST-NO
- Orientation :
- Straight
- Factory Lead Time :
- 11 Weeks
- Electrical Life :
- 5e+06 cycles
- Current Rating :
- 50mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Resistance :
- 50mOhm
- Mounting Type :
- Through Hole
- Contact Material :
- Silver
- Termination Style :
- PC Pin
- Mechanical Life :
- 5,000,000 Cycles
- Actuator Orientation :
- Top Actuated
- Termination :
- PC Pin
- ECCN Code :
- EAR99
- Actuator Length :
- 1.5mm
- Contact Bounce Time-Max :
- 10ms
- Number of Switches :
- 1
- Operating Force :
- 65gf
- Actuator Type :
- Standard
- Switch Type :
- KEYPAD SWITCH
- Illumination :
- Non-Illuminated
- Published :
- 2013
- Voltage - Rated DC :
- 12V
- Outline :
- 6.00mm x 6.00mm
- Actuator Height off PCB, Vertical :
- 5.00mm
- Datasheets
- LL1105AF065Q
