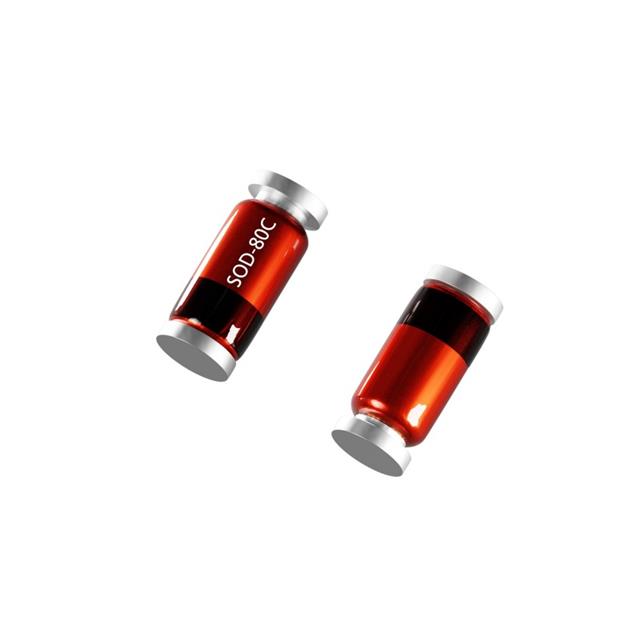

LL101B
Or copy the link below:
- Mfr.Part #
- LL101B
- Manufacturer
- Diotec Semiconductor
- Package / Case
- DO-213AC, MINI-MELF, SOD-80
- Datasheet
- Download
- Description
- SchottkyD, 50V, 0.015A
- Stock
- 7,500
- In Stock ：
- 7,500
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Diotec Semiconductor
- Product Category :
- Diodes - Rectifiers - Single
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Package / Case :
- DO-213AC, MINI-MELF, SOD-80
- Voltage - Forward (Vf) (Max) @ If :
- 400mV @ 1mA
- Mounting Type :
- Surface Mount
- Voltage - DC Reverse (Vr) (Max) :
- 50V
- Supplier Device Package :
- SOD-80 MiniMELF
- Diode Type :
- Schottky
- Speed :
- Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time :
- 1 ns
- Capacitance @ Vr, F :
- 2.2pF @ 0V 1MHz
- Average Rectified Current :
- 30mA
- Mount :
- Surface Mount
- Current - Reverse Leakage @ Vr :
- 200nA @ 40V
- Current - Average Rectified (Io) :
- 30mA DC
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Tape and Reel (TR)
- Operating Temperature - Junction :
- 125°C Max
- Max Reverse Voltage (DC) :
- 50V
- Series :
- Automotive, AEC-Q101
- Datasheets
- LL101B
LL101B Documents
Schottky Diode Rectifier Small Signal =< 200mA (Io), Any Speed 400mV @ 1mA 125°C Max 200nA @ 40V Tape & Reel (TR) DO-213AC, MINI-MELF, SOD-80 Surface Mount
LL101B-7 Overview
Devices like this have an average rectified current of 30mA volts.
LL101B-7 Features
an average rectified current of 30mA volts
LL101B-7 Applications
There are a lot of Vishay Semiconductor Diodes Division
LL101B-7 applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
