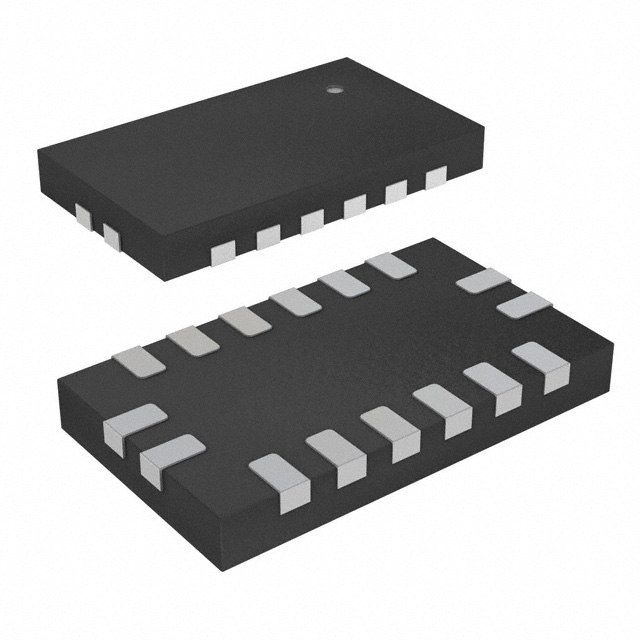

LIS3LV02DL
Or copy the link below:
- Mfr.Part #
- LIS3LV02DL
- Manufacturer
- STMicroelectronics
- Package / Case
- 16-VLGA
- Datasheet
- Download
- Description
- ACCELEROMETER 2-6G I2C/SPI 16LGA
- Stock
- 5,965
- In Stock ：
- 5,965
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- STMicroelectronics
- Product Category :
- Motion Sensors - Accelerometers
- Acceleration Range :
- ±2g, 6g
- Bandwidth :
- 10Hz ~ 640Hz
- Factory Lead Time :
- 26 Weeks
- Width :
- 4.4mm
- Min Supply Voltage (DC) :
- 2.16V
- Max Supply Voltage (DC) :
- 3.6V
- Package / Case :
- 16-VLGA
- Operating Temperature :
- -40°C~85°C TA
- Height :
- 700μm
- Mount :
- Surface Mount
- Packaging :
- Tray
- Number of Functions :
- 1
- Operating Supply Current :
- 650μA
- Supply Voltage :
- 3.3V
- Power Supplies :
- 2.5/3.3V
- Lead Free :
- Lead Free
- Nominal Supply Current :
- 650μA
- REACH SVHC :
- No SVHC
- Number of Terminations :
- 16
- JESD-609 Code :
- e4
- Contact Plating :
- Gold
- Terminal Pitch :
- 1mm
- Mounting Type :
- Surface Mount
- RoHS Status :
- ROHS3 Compliant
- ECCN Code :
- EAR99
- Length :
- 7.5mm
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Lifecycle Status :
- ACTIVE (Last Updated: 8 months ago)
- Sensitivity (mV/G) :
- 374 mV/g
- Feature :
- Adjustable Bandwidth, Selectable Scale
- HTS Code :
- 8542.39.00.01
- Sensitivity (LSB/g) :
- 1024 (±2g) ~ 340 (±6g)
- Peak Reflow Temperature (Cel) :
- 260
- Termination :
- SMD/SMT
- Type :
- Digital
- Number of Pins :
- 16
- Terminal Form :
- BUTT
- Base Part Number :
- LIS3
- Resolution :
- 2 B
- Axis :
- X, Y, Z
- Time@Peak Reflow Temperature-Max (s) :
- 30
- Terminal Position :
- BOTTOM
- Voltage - Supply :
- 2.16V~3.6V
- Output Type :
- I2C, SPI
- Sensor Type :
- 3 Axis
- Pin Count :
- 16
- Interface :
- I2C, SPI
- Radiation Hardening :
- No
- Datasheets
- LIS3LV02DL
LIS3LV02DL datasheet pdf and Motion Sensors - Accelerometers product details from STMicroelectronics stock available at
LIS3LV02DL Description
The LIS3LV02DL is a three-axes digital output linear accelerometer that has an IC interface that can receive data from the sensing element and transmit measured acceleration signals to the outside world via an I2C/SPI serial interface.
A specific technology created by ST to generate silicon inertial sensors and actuators is used to create the sensing element, which can detect acceleration.
Instead, the IC interface is created utilizing a CMOS manufacturing method, which enables high levels of integration for the creation of a specific circuit that is factory trimmed to better fit the sensing element characteristics.
The LIS3LV02DL can measure acceleration over a bandwidth of 640 Hz for all axes and has a user-selectable full scale of ±2g or ±6g. The device bandwidth can be chosen based on the needs of the application.
The user can test the device's functionality using the self-test feature.
When a programmed acceleration threshold is exceeded in at least one of the three axes, the device may also be set up to create an inertial wake-up/free-fall interrupt signal.
The LIS3LV02DL is defined for a temperature range of -40°C to +85°C and is offered in a plastic SMD package.
LIS3LV02DL Features
-
Interrupt activated by motion
-
Programmable interrupt threshold
-
Embedded self test
-
High shock survivability
-
ECOPACK® compliant
-
2.16 V to 3.6 V single supply operation
-
1.8 V compatible IOs
-
I2C/SPI digital output interfaces
-
Programmable 12 or 16 bit data representation
LIS3LV02DL Applications
-
Antitheft systems and Inertial navigation
-
Gaming and virtual reality input devices
-
Vibration monitoring and compensation
-
Free-Fall detection
-
Motion activated functions in portable terminals
