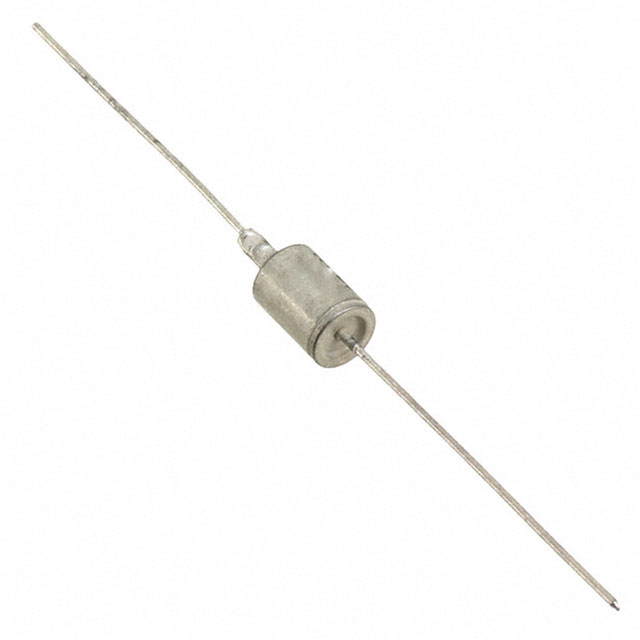

LC11A/TR

Manufacturer :

Microchip Technology

Product Category :

Voltage - Breakdown (Min) :

12.2V

Applications :

GENERAL PURPOSE

Number of Channels :

1 Channel

Product Type :

TVS Diodes

Clamping Voltage :

18.2 V

Mounting Type :

Through Hole

Series :

-

Product Status :

Active

Current - Peak Pulse (10/1000μs) :

82A

Package :

Tape and Reel (TR)

Breakdown Voltage :

12.2 V

Termination Style :

Axial

Type :

Zener

Manufacturer :

Microchip

Package / Case :

DO-13

Supplier Device Package :

DO-202AA (DO-13)

Current Rating :

5 uA

Unidirectional Channels :

1

Power - Peak Pulse :

1500W (1.5kW)

Minimum Operating Temperature :

- 65 C

Working Voltage :

11 V

Capacitance @ Frequency :

100pF @ 1MHz

Voltage - Clamping (Max) @ Ipp :

18.2V

Subcategory :

TVS Diodes / ESD Suppression Diodes

Maximum Operating Temperature :

+ 175 C

Operating Temperature :

-65°C ~ 175°C (TJ)

RoHS :

N

Power Line Protection :

No

Voltage - Reverse Standoff (Typ) :

11V

Product Category :

ESD Suppressors / TVS Diodes

Brand :

Microchip Technology

Polarity :

Unidirectional

Packaging :

Reel
