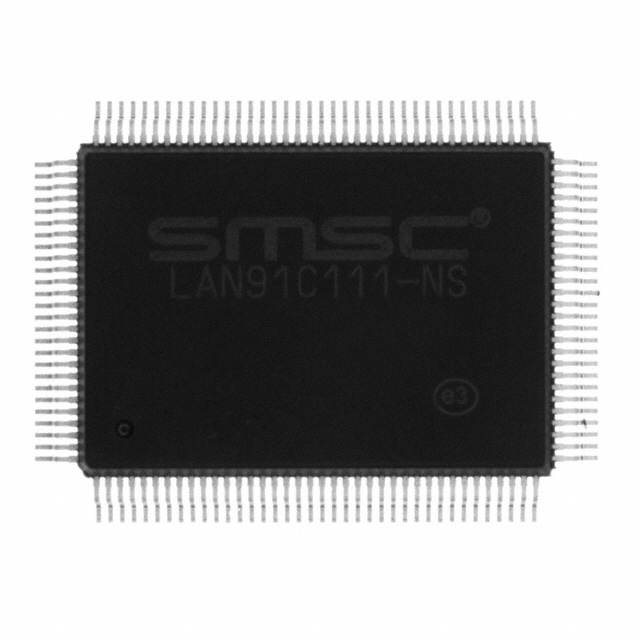

LAN91C111-NS

Manufacturer :

Microchip Technology

Product Category :

Controllers

Product Type :

Ethernet ICs

Peak Reflow Temperature (Cel) :

245

Operating Temperature Classification :

COMMERCIAL

Data Encoding/Decoding Method :

NRZ; BIPH-LEVEL(MANCHESTER)

Subcategory :

Communication and Networking ICs

Base Part Number :

LAN91C111

Dimensions :

20.1 x 14.1 x 3.05mm

Supplier Package :

PQFP

Standard Supported :

IEEE 802.3/IEEE 802.3u

RoHS :

Details

Supply Current-Max :

140 mA

REACH SVHC :

No SVHC

External Data Bus Width :

32

Series :

--

Product Category :

Ethernet ICs

Protocol :

Ethernet

Boundary Scan :

No

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Mounting :

Surface Mount

Package Shape :

RECTANGULAR

Operating Supply Voltage (Min) :

3.135 V

Contact Plating :

Tin

Mount :

Surface Mount

Mounting Style :

SMD/SMT

Screening Level :

COMMERCIAL

Number of Terminals :

128

Surface Mount :

yes

Published :

2003

Operating Temperature :

0°C~70°C

Standards :

10/100 Base-T/TX PHY

Low Power Mode :

yes

Radiation Hardening :

No

Terminal Finish :

Matte Tin (Sn) - annealed

Function :

Controller

Product :

Ethernet Controllers

Package / Case :

128-BFQFP

Bus Compatibility :

ARM; SH; POWERPC; COLDFIRE; 680X0; 683XX; MIPS R3000

Height :

3.05mm

Voltage - Supply :

3.3V

Terminal Form :

Gull wing

Operating Supply Voltage (Typ) :

3.3 V

Reach Compliance Code :

Compliant

Pbfree Code :

yes

Number of Terminations :

128

Factory Lead Time :

8 Weeks

Base Product Number :

LAN91C111

Terminal Position :

QUAD

Max Supply Current :

140mA

Brand :

Microchip Technology / Atmel

Manufacturer :

Microchip

Maximum Operating Temperature :

+70 °C

Seated Height-Max :

3.4 mm

Product Status :

Active

Communication Protocol :

SYNC, BYTE; ETHERNET

uPs/uCs/Peripheral ICs Type :

SERIAL IO/COMMUNICATION CONTROLLER, LAN

Interface :

Parallel

Pin Count :

128

HTS Code :

8542.31.00.01

Temperature Grade :

COMMERCIAL

Rad Hardened :

No

Operating Supply Voltage (Max) :

3.465 V

JESD-30 Code :

R-PQFP-G128

DMA Support :

yes

Lead Free :

Lead Free

JESD-609 Code :

e3

Current - Supply :

--

Data Rate :

100 Mbps

Qualification Status :

Not Qualified

Package :

Tray

Supply Voltage-Max (Vsup) :

3.63V

Number of Transceivers :

1

Interface Type :

MII

Operating Supply Voltage :

3.3V

Minimum Operating Temperature :

0 °C

Physical Network Type :

100BaseTX, 10BaseT

Packaging :

Tray

RoHS Status :

ROHS3 Compliant

Standard :

10BASE-T, 100BASE-TX

Auto-Negotiation :

yes

Data Transfer Rate-Max :

12.5 MBps

Communication Mode :

Full Duplex/Half Duplex

Mounting Type :

Surface Mount

Number of Serial I/Os :

2

Clock Frequency :

25MHz

Length :

20.1mm

Address Bus Width :

16

Supplier Device Package :

128-QFP (14x20)

Supply Voltage :

3.3V

Terminal Pitch :

0.5mm

Typical Operating Supply Voltage :

3.3 V

Package Type :

PQFP

Loopback Mode :

Internal

Time@Peak Reflow Temperature-Max (s) :

40

Category :

Single Chip

Host Interface :

EISA/ISA

Width :

14.1mm

Number of Pins :

128
