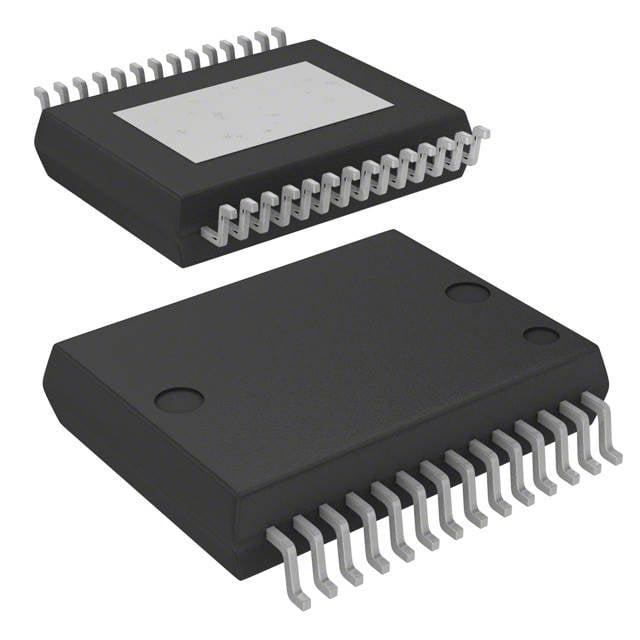

L9733XPTR

Manufacturer :

STMicroelectronics

Product Category :

Power Distribution Switches, Load Drivers

Turn On Delay Time :

20 μs

Operating Temperature :

-40°C~125°C TA

Output Current Flow Direction :

SOURCE

Output Peak Current Limit-Nom :

1A

Terminal Position :

Dual

Mount :

Surface Mount

Output Configuration :

High Side or Low Side

Number of Pins :

28

Packaging :

Tape and Reel (TR)

Rds On (Typ) :

700m Ω (Max)

JESD-609 Code :

e3

Operating Supply Voltage :

5V

Lifecycle Status :

ACTIVE (Last Updated: 7 months ago)

Number of Functions :

1

Voltage - Supply (Vcc/Vdd) :

4.5V~5.5V

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Package / Case :

28-SSOP (0.295, 7.50mm Width) Exposed Pad

Base Part Number :

L9733

Mounting Type :

Surface Mount

Terminal Finish :

Matte Tin (Sn) - annealed

Peak Reflow Temperature (Cel) :

260

Max Supply Current :

8.5mA

Built-in Protections :

OVER CURRENT; THERMAL

Ratio - Input:Output :

1:8

Interface :

SPI

Output Type :

N-Channel

Terminal Pitch :

0.65mm

Input Type :

Non-Inverting

Height Seated (Max) :

2.45mm

Power Supplies :

5V

Turn-Off Delay Time :

100 µs

Pin Count :

28

Width :

7.5mm

Terminal Form :

Gull wing

Time@Peak Reflow Temperature-Max (s) :

30

Voltage - Load :

4.5V~18V

Number of Outputs :

8

Number of Terminations :

28

Feature :

PWM Input

Output Current per Channel :

1A

Fault Protection :

Open Load Detect, Over Temperature

Fall Time (Typ) :

70 ns

Rise Time :

70ns

ECCN Code :

EAR99

Radiation Hardening :

No

Factory Lead Time :

30 Weeks

Driver Number of Bits :

8

Switch Type :

GENERAL PURPOSE

Resistance :

700mOhm

Length :

10.3mm

Max Output Current :

800mA

Supply Voltage :

5V
