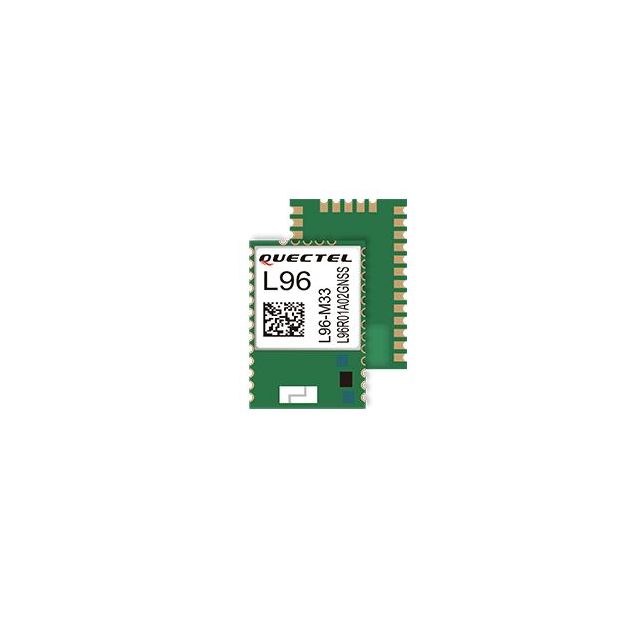

L96-M33

Manufacturer :

Quectel

Product Category :

RF Transceiver Modules and Modems

Package Shape :

RECTANGULAR

Length :

14 mm

Temperature Grade :

Industrial

RoHS :

Details

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Memory Size :

-

Maximum Operating Temperature :

+ 85 C

Package / Case :

31-SMD Module

Power - Output :

-

Telecom IC Type :

TELECOM CIRCUIT

Series :

-

Terminal Position :

UNSPECIFIED

Number of Functions :

1

Minimum Operating Temperature :

- 40 C

Tradename :

Wireless communication module

Surface Mount :

yes

Voltage - Supply :

2.8V ~ 4.3V

Operating Temperature :

-40°C ~ 85°C

Current - Receiving :

-

Current - Transmitting :

-

Interface Type :

I2C, UART

Packaging :

Cut Tape

Product Status :

Active

Width :

9.6 mm

RF Family/Standard :

Navigation

Frequency :

1561.098 MHz, 1575.42 MHz, 1602.5625 MHz

Mounting Type :

Surface Mount

Seated Height-Max :

2.5 mm

Mounting Style :

SMD/SMT

Antenna Type :

Integrated, Chip

Protocol :

BeiDou, Galileo, GLONASS, GPS, GNSS

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Operating Supply Voltage :

3.3 V

Factory Lead Time :

4 Weeks

JESD-30 Code :

R-XXMA-N31

Number of Terminals :

31

Utilized IC / Part :

-

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Serial Interfaces :

I²C, UART

Modulation :

-

Sensitivity :

-165dBm

Terminal Form :

NO LEAD

Base Product Number :

L96

Data Rate :

115.2kbps

Reach Compliance Code :

Compliant
