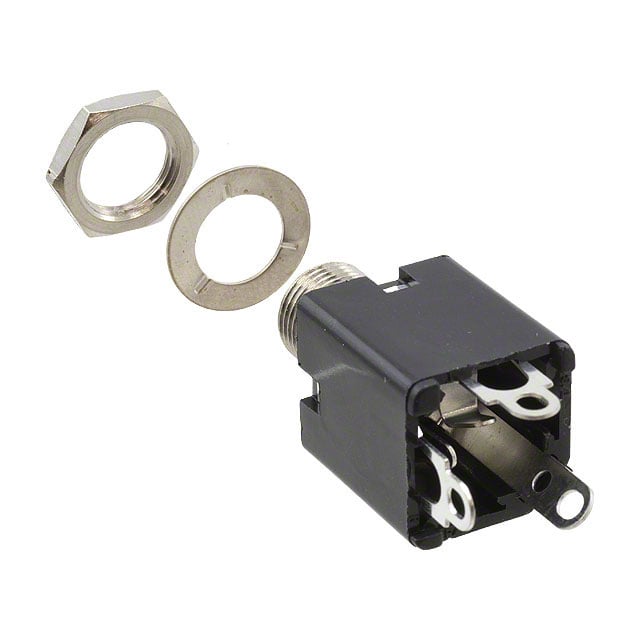

L112BX

Manufacturer :

Switchcraft / Conxall

Product Category :

Audio Connectors

Mount :

Panel

Voltage - Rated :

48VDC

Number of Terminations :

3

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

Not Applicable

Current Rating :

250mA

Body Color :

Silver, Black

Body Material :

Brass

Industry Recognized Mating Diameter :

6.35mm (0.250, 1/4) - Headphone

Operating Temperature :

-20°C~65°C

Contact Plating :

Nickel, Tin

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Number of Ports :

1

DIN Conformance :

No

Mounting Type :

Panel Mount

Number of Positions/Contacts :

3 Conductors, 3 Contacts

MIL Conformance :

No

Housing Color :

Black

Shielding :

Unshielded

Published :

2008

Thread Size :

3/8-32

Signal Lines :

Stereo (3 Conductor, TRS)

Panel Hole Size :

0.375 9.52mm

Option :

GENERAL PURPOSE

Termination :

Solder Eyelet(s)

Length :

15.87mm

Actual Diameter :

0.250 (6.35mm)

Packaging :

Bulk

IEC Conformance :

No

Number of Poles :

3

Series :

Hi-D JAX® L11

Internal Switch(s) :

Does Not Contain Switch

Housing Material :

Polyester, Glass Filled

Connector Type :

Phone Jack

Feature :

Mounting Hardware, Thread Lock

Factory Lead Time :

8 Weeks

Gender :

FEMALE

Orientation :

Straight

RoHS Status :

ROHS3 Compliant

Contact Material - Plating :

Tin
