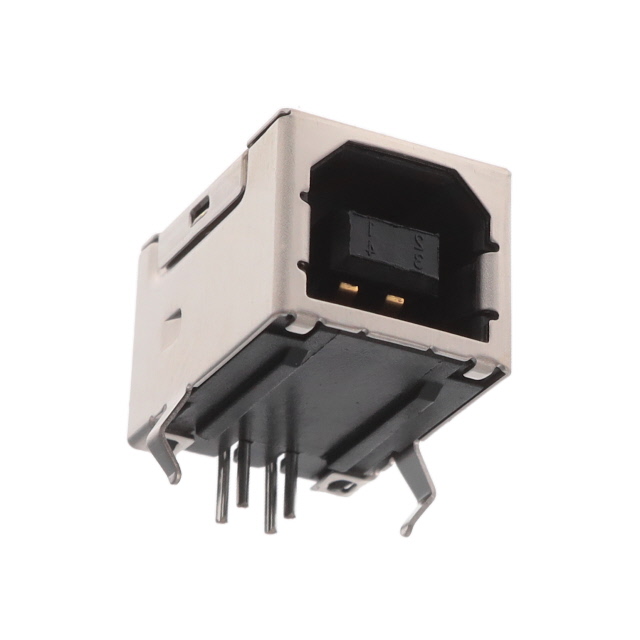

KUSBX-BS1N-B30

Manufacturer :

Kycon

Product Category :

USB, DVI, HDMI Connector Assemblies

PCB Contact Row Spacing :

2.0066 mm

Dielectric Withstanding Voltage :

750VAC V

Contact Resistance :

30mOhm

Number of Conductors :

ONE

Voltage - Rated :

30VAC

Mounting Option 1 :

LOCKING

Contact Style :

USB, SER B SQ

Mounting Feature :

Horizontal

Number of Contacts :

4

Shell/Shielding Material :

Brass

Insulation Color :

Black

Published :

2005

Mixed Contacts :

No

Contact Finish :

Gold

Reference Standard :

UL, CSA

RoHS Status :

RoHS Compliant

Factory Lead Time :

20 Weeks

Body Depth :

0.622 inch

Material Flammability Rating :

UL94 V-0

MIL Conformance :

No

Insulation Material :

PBT THERMOPLASTIC

DIN Conformance :

No

Filter Feature :

No

Packaging :

Tray

Shielding :

Shielded

JESD-609 Code :

e3

Gender :

Receptacle

Series :

KUSBX

Shell Finish :

Nickel

Reliability :

COMMERCIAL

Plating Thickness :

30μin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Color :

White

Contact Material :

NOT SPECIFIED

Number of Ports :

1

IEC Conformance :

No

Termination :

Solder

Insulation Resistance :

1GOhm

Number Of PCB Rows :

2

Option :

GENERAL PURPOSE

Operating Temperature :

-40°C~85°C

Current Rating (Amps) :

1A

PCB Contact Pattern :

RECTANGULAR

Polarization Key :

POLAR PIN POSITION

Mounting Type :

Through Hole, Right Angle

Empty Shell :

No

Connector Type :

USB-B (USB TYPE-B)
