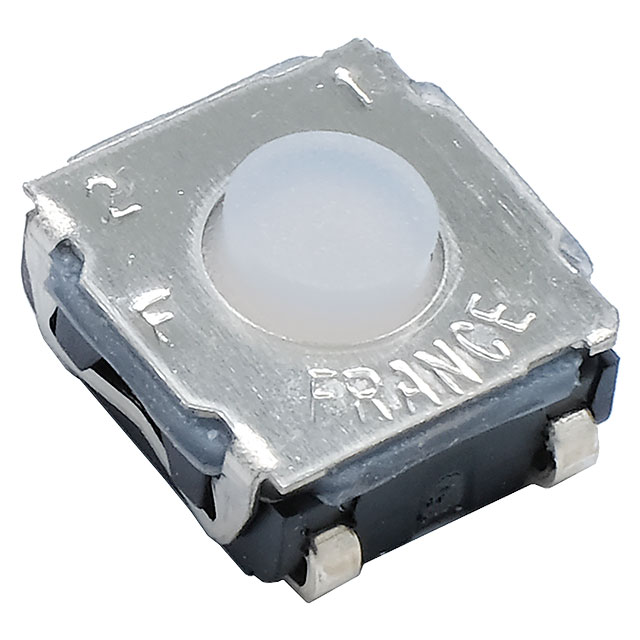

KSC2 TE 01J LFS

Manufacturer :

C&K

Product Category :

Pole Throw Configuration :

SPST

Mounting :

Surface Mount

RoHS :

Details

Product :

Tactile Switches

Power Rating :

1 VA

Subcategory :

Switches

Product Height (mm) :

3.5

Switching Function :

Momentary

Illumination Color :

-

Brand :

CandK

Switch Function Configuration :

N.O.

Number of Rows :

2

Manufacturer :

CandK Switches

Number of Terminals :

4

Minimum Insulation Resistance (MOhm) :

>1000

RoHS Status :

RoHS Compliant

Color :

Clear

Electrical Life (Cycles) :

10000000

Maximum Current Rating (A) :

0.003@24VDC

Body Height (mm) :

2.9

Actuator Length :

0.6 mm

Actuator Style :

Round Button

Illumination Type :

Not Required

Lamp Type :

-

Travel :

0.3 mm

Switch Function :

OFF - (ON)

Maximum Operating Temperature :

+ 90 C

Actuator Material :

Silicone

Operating Temp Range :

-40C to 90C

Voltage Rating (VDC) :

24(V)

Tradename :

KSC

Mounting Style :

Surface Mount

Minimum Operating Temperature (°C) :

-40

Contact Material :

Silver

Switch Configuration :

N.O.

IP Rating :

IP67

Minimum Operating Temperature :

- 40 C

Termination Style :

J-Bend

Dielectric Strength :

>250Vrms

Body Orientation :

Straight

Maximum Contact Resistance (mOhm) :

Terminal Pitch (mm) :

4

Contact Plating :

Silver

HTS :

8536.50.90.65

Actuator Orientation :

Top Actuated

Length :

6.3 mm

Height :

2.9 mm

Current Rating :

3 mA

Type :

Tireless Endurance

Row Spacing (mm) :

5.8

Series :

KSC TE

Body Length (mm) :

6.2

Terminal Length (mm) :

0.25

Body Depth (mm) :

6.3

Illumination :

Non Illuminated

Width :

6.2 mm

Packaging :

Tape and Reel

Product Type :

Tactile Switches

Operating Force :

1.6(N)

Operating Force (N) :

1.6

Contact Form :

SPST

Actuator Length (mm) :

0.6

Terminal Type :

J-Bend

Product Depth (mm) :

6.8

Maximum Operating Temperature (°C) :

90

Actuator :

Round

ECCN (US) :

EAR99

Product Category :

Tactile Switches

Product Length (mm) :

6.2
