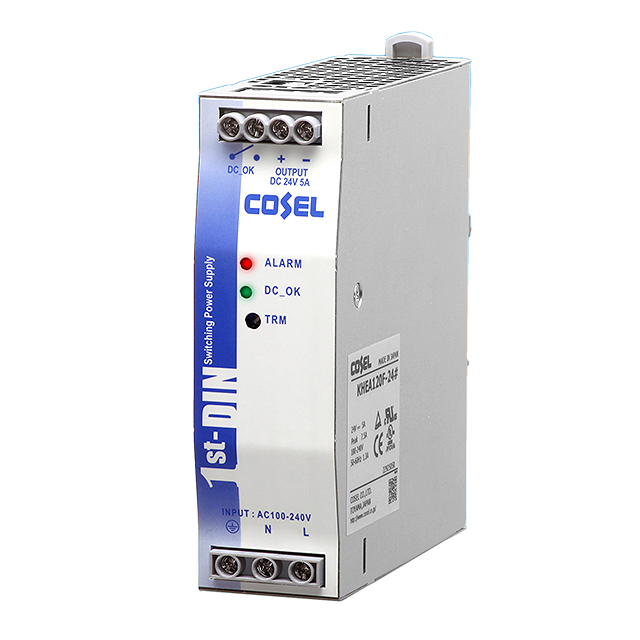

KHEA120F-24

Manufacturer :

Cosel

Product Category :

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Position :

UNSPECIFIED

Additional Feature :

COEL-O-A0009258779

Reach Compliance Code :

Unknown

Approval Agency :

CE, cURus, TUV

Efficiency :

92%

Min Output Voltage :

24V

RoHS Status :

ROHS3 Compliant

Input Voltage-Nom :

100V

Power (Watts) :

120W

Moisture Sensitivity Level (MSL) :

Not Applicable

Factory Lead Time :

6 Weeks

Output Voltage :

24V

Applications :

ITE (Commercial)

Mount :

DIN Rail

Size / Dimension :

4.77Lx1.46W x 4.88 H 121.2mmx37.0mmx124.0mm

Min Input Voltage :

85V

Max Input Voltage :

264V

JESD-30 Code :

R-XXFM-X7

Mounting Type :

DIN Rail

Series :

KHEA (120W)

Voltage - Isolation :

3kV

Max Output Voltage :

24V

Depth :

124mm

Voltage - Input :

85V~264VAC

Operating Temperature :

-20°C~70°C With Derating

Feature :

Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input

Type :

Enclosed

Number of Outputs :

1

Published :

2013

Trim/Adjustable Output :

yes

Terminal Form :

UNSPECIFIED

Weight :

580g

Lead Free :

Lead Free

Output Current :

5A

Number of Terminations :

7

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Output Power :

120W

Number of Functions :

1
