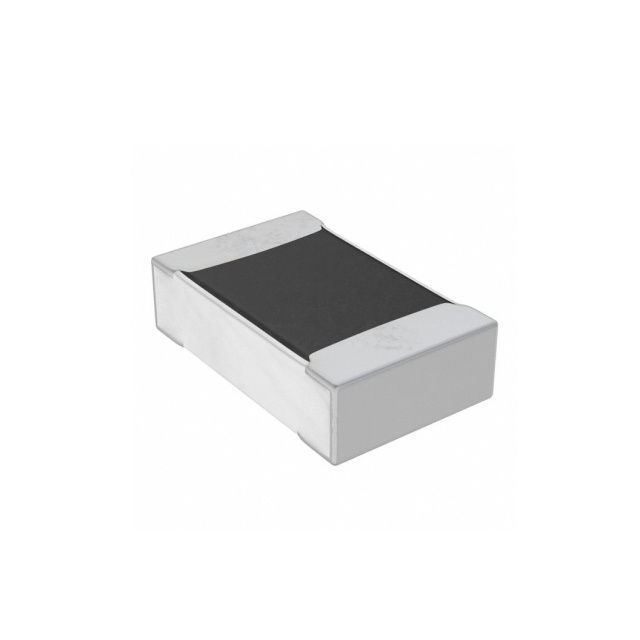

KDV02DR560ET
Or copy the link below:
- Mfr.Part #
- KDV02DR560ET
- Manufacturer
- Ohmite
- Package / Case
- 0201 (0603 Metric)
- Datasheet
- Download
- Description
- RES 0.56 OHM 0.5% 1/10W 0201
- Stock
- 5,640
- In Stock ：
- 5,640
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Ohmite
- Product Category :
- Chip Resistor - Surface Mount
- Tolerance :
- ±0.5%
- Product Category :
- Current Sense Resistors - SMD
- Power (Watts) :
- 0.1W, 1/10W
- Number of Terminations :
- 2
- Termination Style :
- SMD/SMT
- Mounting Style :
- PCB Mount
- Product :
- Metal Film Resistors
- Resistance :
- 560 mOhms
- Product Type :
- Current Sense Resistors
- Features :
- Current Sense
- Temperature Coefficient :
- ±50ppm/°C
- Height :
- 0.26 mm
- Width :
- 0.3 mm
- Type :
- Low-Resistance Chip Resistor
- Minimum Operating Temperature :
- - 55 C
- Subcategory :
- Resistors
- Series :
- KDV
- Supplier Device Package :
- 0201
- Package :
- Digi-Reel?
- Package / Case :
- 0201 (0603 Metric)
- Application :
- Current Sense
- Brand :
- Ohmite
- Power Rating :
- 100 mW (1/10 W)
- Maximum Operating Temperature :
- + 155 C
- Height - Seated (Max) :
- 0.012" (0.31mm)
- Manufacturer :
- Ohmite
- Packaging :
- Reel
- Length :
- 0.6 mm
- Failure Rate :
- -
- RoHS :
- Details
- Composition :
- Metal Film
- Termination :
- 2 Terminal
- Ratings :
- -
- Technology :
- Metal/Thick Film
- Size / Dimension :
- 0.024" L x 0.012" W (0.60mm x 0.30mm)
- Product Status :
- Active
- Operating Temperature :
- -55°C ~ 155°C
- Datasheets
- KDV02DR560ET
KDV02DR560ET Documents
KDV Series, Metal Film, 560 mOhms, 0.1W, 1/10W, ±0.5%, -55°C ~ 155°C
