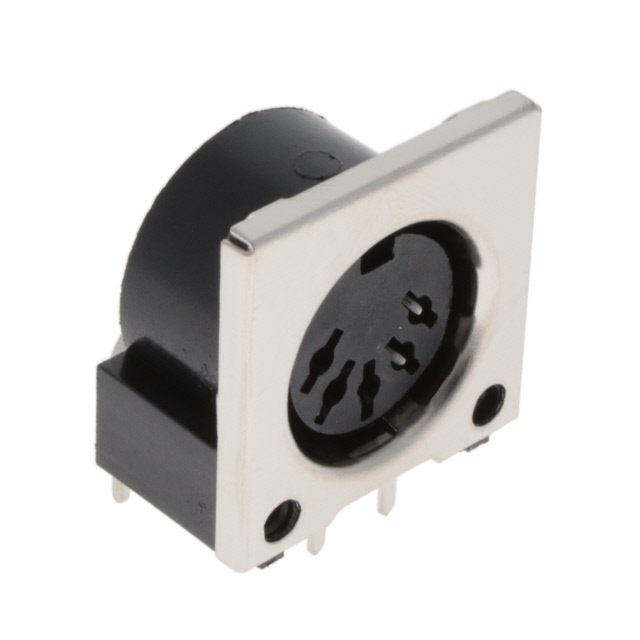

KCDX-5S-S2
Or copy the link below:
- Mfr.Part #
- KCDX-5S-S2
- Manufacturer
- Kycon
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE MINI DIN 5P SLDR
- Stock
- 1,212
- In Stock ：
- 1,212
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Kycon
- Product Category :
- Circular Connector Assemblies
- Shielding :
- Shielded
- ECCN Code :
- EAR99
- Number of Ports :
- 1
- Mounting Type :
- Through Hole, Right Angle
- Fastening Type :
- Push-Pull
- Total Number of Contacts :
- 5
- Published :
- 2011
- Shell Material :
- Polybutylene Terephthalate (PBT)
- Packaging :
- Tray
- Contact Resistance :
- 60mOhm
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 5
- RoHS Status :
- RoHS Compliant
- Operating Temperature :
- -25°C~85°C
- Body Depth :
- 0.748 inch
- Contact Gender :
- FEMALE
- Factory Lead Time :
- 20 Weeks
- Shell Size - Insert :
- Mini DIN
- Current Rating :
- 2A
- IEC Conformance :
- No
- Mounting Option 1 :
- LOCKING
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Brass
- JESD-609 Code :
- e3
- Reference Standard :
- UL, CSA
- Voltage - Rated DC :
- 24V
- Insulation Resistance :
- 100000000Ohm
- Feature :
- Board Guide
- Series :
- KCDX
- Termination :
- Solder
- Reliability :
- COMMERCIAL
- Contact Finish - Mating :
- Tin
- Connector Type :
- Receptacle, Female Sockets
- Option :
- GENERAL PURPOSE
- Voltage - Rated :
- 24VDC
- DIN Conformance :
- yes
- MIL Conformance :
- No
- Body Length or Diameter :
- 0.827 inch
- Body Breadth :
- 0.768 inch
- Insert Material :
- Polybutylene Terephthalate (PBT)
- Orientation :
- Keyed
- Color :
- Black, Silver
- Applications :
- Audio, Video
- Rated Current (Signal) :
- 2A
- EMI Shielded :
- yes
- Plating :
- Nickel
- Datasheets
- KCDX-5S-S2
KCDX-5S-S2 Documents
Receptacle, Female Sockets Polybutylene Terephthalate (PBT) Through Hole, Right Angle 5 Positions Solder Tin Tray Keyed Push-Pull
KCDX-5S-S2 Overview
The product comes in a package of Receptacle, Female Sockets.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the KCDX Series.It is more powerful in many ways due to its Board Guide feature.It operates at an operating temperature of -25°C~85°C.
KCDX-5S-S2 Features
KCDX series
KCDX-5S-S2 Applications
There are a lot of Kycon, Inc.
KCDX-5S-S2 Circular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
