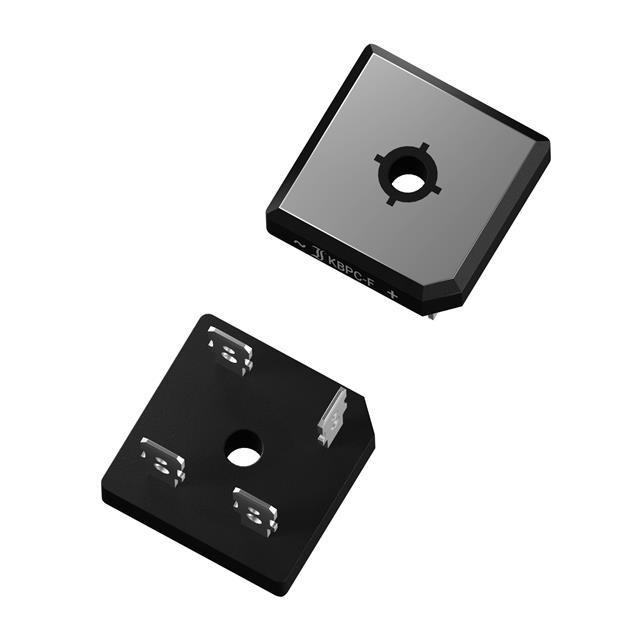

KBPC3510WP

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Bridge Rectifiers

Operating Temperature Classification :

Automotive

Maximum Operating Temperature (°C) :

150

RoHS Status :

Yes with exemptions

Configuration :

Single

Operating Temp Range :

-50C to 150C

Number of Elements :

1

Peak Reverse Repetitive Voltage (V) :

1000

Supplier Temperature Grade :

COMMERCIAL

Peak Reverse Current (uA) :

10

Peak Non-Repetitive Surge Current (Max) :

400(A)

Peak Non-Repetitive Forward Surge Current (A) :

400

PCB changed :

4

Minimum Operating Temperature (°C) :

-50

Rev Curr :

10(mA)

RMS Voltage (Max) :

700(V)

Pin Count :

4

Military :

No

Forward Voltage :

1.1(V)

Diode Type :

Standard Recovery Rectifier

Bridge Type :

Single Phase

Peak RMS Reverse Voltage (V) :

700

Phase Type :

Single Phase

Peak Reverse Recovery Time (ns) :

1500(Typ)

Package Width :

28.6

Packaging :

Box

Peak Rep Rev Volt :

1000(V)

Package Height :

7.3

Package Length :

28.6

Automotive :

yes

ECCN (US) :

EAR99

Peak Average Forward Current (A) :

35@Ta=50C

Avg. Forward Curr (Max) :

35@TA=50C(A)

Rad Hardened :

No

Mounting :

Screw
