Mfr.Part #
JXD0-2005NL
Manufacturer
Pulse Electronics
Package / Case
Datasheet
Download
Description
CONN JACK 2PORT 100 BASE-T PCB
Stock
370
In Stock :
370

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Pulse Electronics
Product Category :
Modular Connector Jacks With Magnetics
Shielding :
Shielded, Bezel EMI Finger
Configuration :
1x2
Type :
RJ-45
Pitch :
2.54 mm
Subcategory :
Modular Connectors / Ethernet Connectors
Product Category :
Modular Connectors / Ethernet Connectors
Termination Method :
Solder
USOC Codes :
RJ45
Gender :
RCP
Body Orientation :
RIGHT ANGLE
Housing Color :
Black
Contact Material :
COPPER ALLOY
Mounting Angle :
RIGHT ANGLE
Product Depth (mm) :
21.35(mm)
Features :
Board Lock
Number of Rows :
1
Operating Temperature :
-40°C~85°C
Brand :
Pulse Electronics
Product Status :
Active
Shield Material :
Brass
Packaging :
Tray
Application :
10/100 Base-TX
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Lifecycle Status :
Production (Last Updated: 2 years ago)
Factory Lead Time :
15 Weeks
Color :
Black
Number of Ports :
2
Package :
Tray
Minimum Operating Temperature :
- 40 C
Family :
JXD
Maximum Operating Temperature :
+ 85 C
Product Type :
Modular Connectors / Ethernet Connectors
Pbfree Code :
yes
Pitch (mm) :
1.27(mm)
Product Height (mm) :
13.5(mm)
Height Above Board :
0.531 13.49mm
Feature :
Board Lock
Mounting Type :
Through Hole
Orientation :
90° Angle (Right)
Connector Type :
RJ45
Termination Style :
Solder Pin
LED Color :
Green - Yellow
Product :
Connectors
Series :
PULSEJACK™ JXD0
Operating Temp Range :
-40C to 85C
Number of Terminals :
24
Contact Finish Thickness :
30.0μin 0.76μm
RoHS Status :
RoHS Compliant
Positions Loaded :
16
Product Length (mm) :
31.24(mm)
Mounting Style :
Through Hole
Manufacturer :
Pulse
Number of Cores per Jack :
4
Applications :
10/100 Base-T, AutoMDIX
RoHS :
Details
Number of Positions :
8 Position
Housing Material :
Thermoplastic
Number of Contacts :
16(POS)
Contact Finish :
Gold
Termination :
Solder
Tab Direction :
Down
Flammability Rating :
UL 94 V-0
Reach Compliance Code :
Compliant
Tradename :
PulseJack
Contact Plating :
Gold
Datasheets
JXD0-2005NL
Introducing Modular Connector Jacks With Magnetics Pulse Electronics JXD0-2005NL from Chip IC,where excellence meets affordability. This product stands out with its Type:RJ-45, Operating Temperature:-40°C~85°C, Mounting Type:Through Hole, JXD0-2005NL pinout, JXD0-2005NL datasheet PDF, JXD0-2005NL amp .Beyond Modular Connector Jacks With Magnetics Pulse Electronics JXD0-2005NL ,we also offer 08B0-1D1T-06-F, 08B0-1G1T-06-F, RJMG2310228A0ER, Our vast inventory has you covered. Contact us now for immediate solutions.

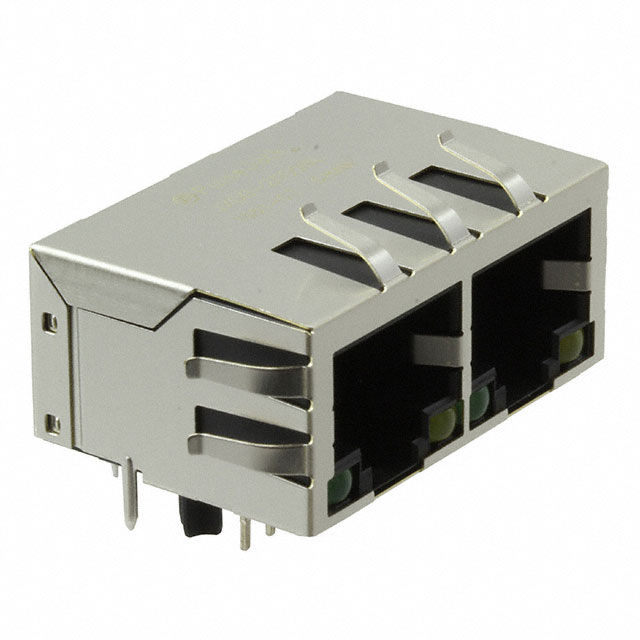

Pulse Electronics JXD0-2005NL
