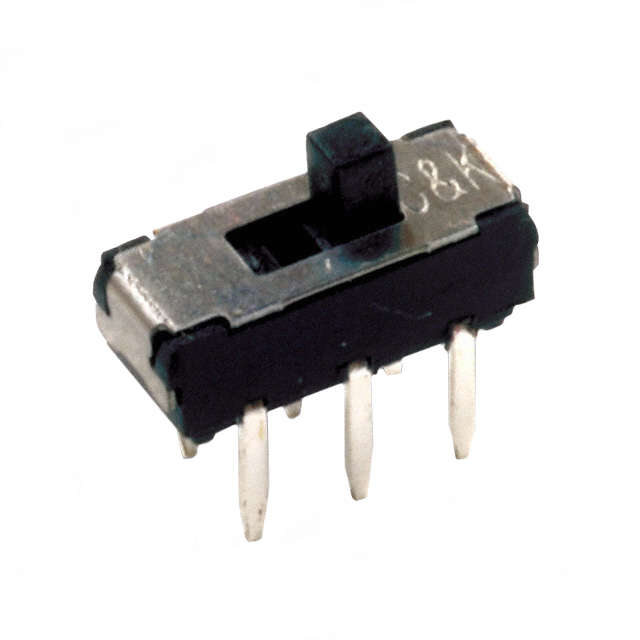

JS202011CQN

Manufacturer :

C&K

Product Category :

Body Height :

3.5 mm

Termination Type :

Solder

Terminal Material :

Brass

Pbfree Code :

yes

Actuator Color :

Black

Center Contact Material :

COPPER ALLOY

Switch Function :

DPDT

Surface Mount :

No

Actuator Type :

Slide

Contact Resistance :

0.07 mΩ

Actuator Material :

Nylon

Terminal Length :

0.118 inch

Body Length or Diameter :

9 mm

End Contact Material :

COPPER ALLOY

PCB Hole Count :

6

Terminal Finish :

Silver (Ag)

Contact Voltage(DC)-Max :

6 V

End Contact Plating :

Silver

Insulation Resistance :

100000000 Ω

ECCN Code :

EAR99

Additional Feature :

LOW PROFILE

Switch Action :

LATCHED

HTS Code :

8536.50.90.50

Body Breadth :

3.6 mm

Electrical Life :

5000 Cycle(s)

Factory Lead Time :

12 Weeks

Actuator Length :

0.079 inch

Switch Type :

SLIDE SWITCH

Center Contact Plating :

Silver

Mounting Feature :

THROUGH HOLE-STRAIGHT

JESD-609 Code :

e4

Housing Material :

Nylon

Reach Compliance Code :

Compliant

Contact Current(DC)-Max :

0.3 A

Number of Positions :

1
