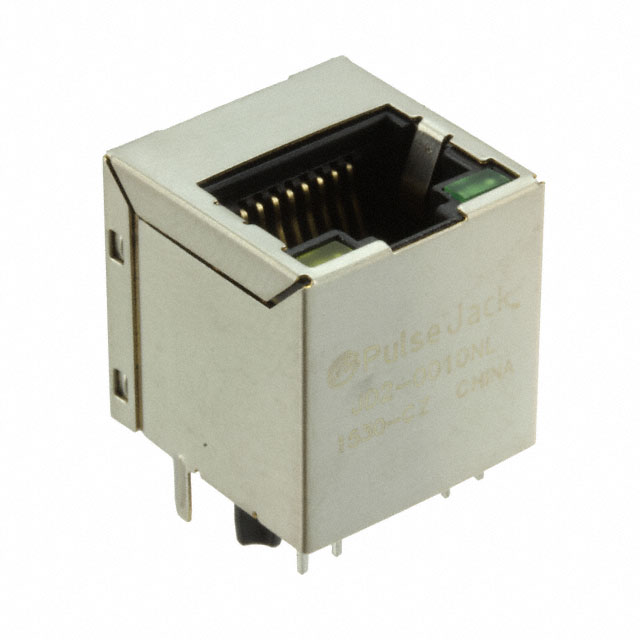

    JD2-0010NL

    Share

    Or copy the link below:

    Mfr.Part #
    JD2-0010NL
    Manufacturer
    Pulse Electronics
    Package / Case
    Datasheet
    Download
    Description
    CONN JACK 1PORT 100 BASE-TX PCB
    Stock
    5,845
    In Stock ：
    5,845

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Pulse Electronics
    Product Category :
    Modular Connector Jacks With Magnetics
    Mounting :
    Through Hole
    Operating Temperature :
    0°C~70°C
    Contact Finish Thickness :
    6.00μin 0.152μm
    Family :
    JD2
    Body Orientation :
    RIGHT ANGLE
    Published :
    2015
    Product Length (mm) :
    16(mm)
    IEC Conformance :
    No
    Brand :
    Pulse Electronics
    Housing Material :
    Thermoplastic
    Product :
    Connectors
    Mixed Contacts :
    No
    Orientation :
    Vertical
    Additional Feature :
    INBUILT TRANSFORMER, SHIELDED, STANDARD: RJ45
    Filter Feature :
    yes
    Product Length :
    16 mm
    Applications :
    10/100 Base-TX, AutoMDIX
    Empty Shell :
    No
    Termination Type :
    Solder
    Base/Housing Material :
    Brass/Thermoplastic
    Product Status :
    Obsolete
    Color :
    Green, Yellow
    MIL Conformance :
    No
    RoHS Status :
    RoHS Compliant
    Factory Lead Time :
    13 Weeks
    Feature :
    Board Guide
    Number of Contacts :
    8 POS
    Mounting Type :
    Through Hole
    Termination Style :
    Solder Pin
    Packaging :
    Tray
    Product Category :
    Modular Connectors / Ethernet Connectors
    Pitch (mm) :
    2.54(mm)
    Contact Material :
    COPPER ALLOY
    Configuration :
    1x1
    Height Above Board :
    0.663 16.85mm
    Number of Cores per Jack :
    4
    Number of Terminals :
    12
    Connector Type :
    RJ45
    Mount :
    Through Hole
    Shielding :
    Shielded
    Contact Finish :
    Gold
    Termination Method :
    Solder
    Positions Loaded :
    12
    Contact Plating :
    Gold
    Number of Ports :
    1
    Product Height (mm) :
    16.85(mm)
    Series :
    PULSEJACK™ JD2
    Option :
    GENERAL PURPOSE
    Manufacturer :
    Pulse
    LED Color :
    Green - Yellow
    Tab Direction :
    User Selectable
    DIN Conformance :
    No
    Shell Finish :
    Nickel
    Mounting Angle :
    Vertical
    Operating Temp Range :
    0C to 70C
    Subcategory :
    Modular Connectors / Ethernet Connectors
    USOC Codes :
    RJ45
    Features :
    Board Guide
    Product Type :
    Modular Connectors / Ethernet Connectors
    Pin Count :
    12
    Total Number of Contacts :
    8
    Direction :
    User Selectable
    Application :
    10/100 Base-TX
    RoHS :
    Details
    Product Depth (mm) :
    16.81(mm)
    UL Flammability Code :
    94V-0
    Mounting Style :
    Through Hole
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    Shell Material :
    Brass
    Gender :
    RCP
    Number of Rows :
    1
    Shield Material :
    Brass
    Package :
    Tray
    Reach Compliance Code :
    Compliant
    Maximum Operating Temperature :
    + 70 C
    Type :
    RJ-45
    Termination :
    Solder
    Minimum Operating Temperature :
    0 C
    Contact Gender :
    FEMALE
    Introducing Modular Connector Jacks With Magnetics Pulse Electronics JD2-0010NL from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature：0°C~70°C, Mounting Type：Through Hole, Type：RJ-45, JD2-0010NL pinout, JD2-0010NL datasheet PDF, JD2-0010NL amp .Beyond Modular Connector Jacks With Magnetics Pulse Electronics JD2-0010NL ,we also offer 08B0-1D1T-06-F, 08B0-1G1T-06-F, RJMG2310228A0ER, Our vast inventory has you covered. Contact us now for immediate solutions.

    Pulse Electronics JD2-0010NL


    JD2-0010NL datasheet pdf and Modular Connectors - Jacks With Magnetics product details from Pulse Electronics Network stock available at Xinshop
