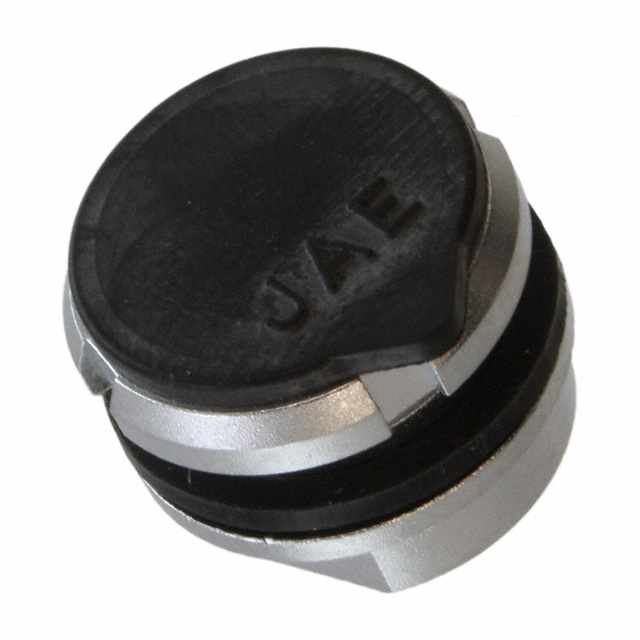

JB5CS08FN00
Or copy the link below:
- Mfr.Part #
- JB5CS08FN00
- Manufacturer
- JAE Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 8POS SOLDER CUP
- Stock
- 3,404
- In Stock ：
- 3,404
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JAE Electronics
- Product Category :
- Circular Connector Assemblies
- Shell Material :
- COPPER ALLOY
- Shell Finish :
- Chromium
- Contact Material :
- COPPER ALLOY
- Ratings :
- Dust Tight, IP68, Waterproof
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Finish - Mating :
- Gold
- Feature :
- Dust Cap
- Mount :
- Bulkhead, Front Side Nut, Jam Nut, Panel
- Factory Lead Time :
- 12 Weeks
- Series :
- JB5
- Published :
- 2004
- Number of Positions :
- 8
- Connector Type :
- Receptacle, Female Sockets
- Mounting Feature :
- Bulkhead - Front Side Nut
- Voltage - Rated AC :
- 200V
- Voltage - Rated :
- 200VAC
- Orientation :
- Keyed
- Termination :
- Solder Cup
- Insert Material :
- Synthetic Resin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Silver
- Lead Free :
- Lead Free
- Operating Temperature :
- -55°C~85°C
- Current Rating :
- 2A
- Shielding :
- Shielded
- Contact Gender :
- FEMALE
- Shell Size - Insert :
- S
- Applications :
- Medical, Telecommunications, Test and Measurement
- RoHS Status :
- RoHS Compliant
- Ingress Protection :
- IP68 - Dust Tight, Waterproof
- Packaging :
- Tray
- Fastening Type :
- Push-Pull
- Mounting Type :
- Panel Mount
- Insulation Material :
- Plastic
- Wire/Cable Gauge :
- 28 AWG
- Datasheets
- JB5CS08FN00
JB5CS08FN00 Documents
Receptacle, Female Sockets Copper Alloy Panel Mount 8 Positions Solder Cup Gold Chromium Tray Keyed Push-Pull
JB5CS08FN00 Overview
Packaging is Receptacle, Female Sockets.Panel Mount is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the JB5 Series, it can be found in this category.With its Dust Cap feature, it is more powerful in many ways.In this case, Bulkhead, Front Side Nut, Jam Nut, Panel mounts the part.The device is operating at -55°C~85°C Operating Temperature.
JB5CS08FN00 Features
JB5 series
JB5CS08FN00 Applications
There are a lot of JAE Electronics
JB5CS08FN00 Circular Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
