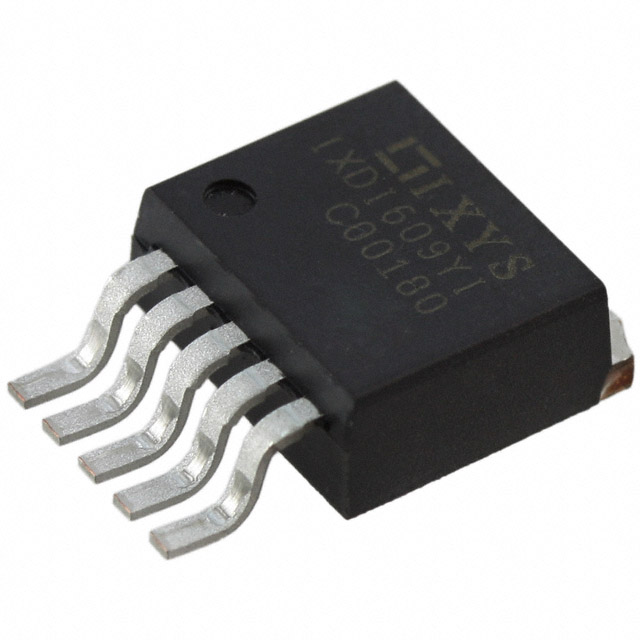

IXDI609YI

Manufacturer :

Littelfuse

Product Category :

Gate Drivers

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

ECCN Code :

EAR99

Other Names :

CLA377 IXDI609YI-ND

Max Operating Temperature :

125°C

Mounting Style :

SMD/SMT

High Side Driver :

No

JESD-30 Code :

R-PSSO-G5

Operating Supply Current :

10μA

Terminal Position :

Single

Seated Height-Max :

4.8 mm

Base Product Number :

IXDI609

Terminal Form :

Gull wing

Width :

9.15 mm

Maximum Operating Temperature :

+ 125 C

Product Type :

Gate Drivers

Manufacturer :

IXYS

Min Operating Temperature :

-40°C

Driven Configuration :

Low-Side

Number of Terminals :

5

Surface Mount :

yes

Configuration :

Inverting

Brand :

IXYS Integrated Circuits

Max Output Current :

2A

Output Peak Current Limit-Nom :

9 A

Minimum Operating Temperature :

- 40 C

HTS Code :

8542.39.00.01

Weight :

1.59999g

Product Status :

Active

Mounting Type :

Surface Mount

Supplier Device Package :

TO-263-5

Rise Time :

22ns

Pin Count :

4

Channel Type :

Single

Temperature Grade :

Automotive

Subcategory :

PMIC - Power Management ICs

Number of Functions :

1

Number of Outputs :

1

Technology :

Si

Interface IC Type :

BUFFER OR INVERTER BASED MOSFET DRIVER

Series :

-

Published :

2014

Tradename :

Clare

Packaging :

Tube

Product Category :

Gate Drivers

Voltage - Supply :

4.5V~35V

Factory Lead Time :

11 Weeks

Terminal Pitch :

1.7 mm

Qualification Status :

Not Qualified

Fall Time (Typ) :

15 ns

Mount :

Surface Mount

Package :

Tube

Number of Drivers :

1

Current - Peak Output (Source, Sink) :

9A 9A

Min Supply Voltage :

4.5V

Length :

9.975 mm

Output Current :

9 A

Type :

Low-Side

Propagation Delay :

30 ns

Reach Compliance Code :

Compliant

Number of Channels :

1

Max Supply Voltage :

35V

Package Shape :

RECTANGULAR

RoHS Status :

ROHS3 Compliant

Input Type :

Inverting

RoHS :

Details

Logic Voltage - VIL, VIH :

0.8V 3V

Operating Temperature :

-55°C~150°C TJ

Gate Type :

IGBT, N-Channel, P-Channel MOSFET

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Rise / Fall Time (Typ) :

22ns 15ns

Power Supplies :

5/30 V

Product :

IGBT, MOSFET Gate Drivers
