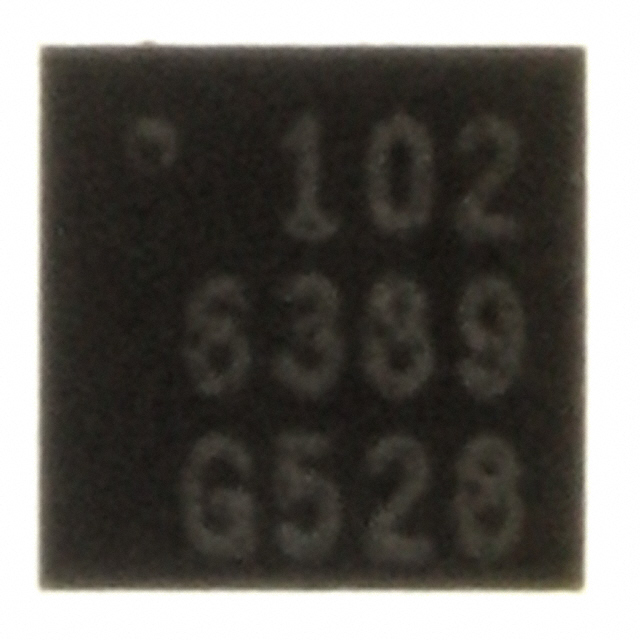

ISP1102BSTM
Or copy the link below:
- Mfr.Part #
- ISP1102BSTM
- Manufacturer
- ST-Ericsson Inc
- Package / Case
- 14-VFQFN Exposed Pad
- Datasheet
- Download
- Description
- IC USB TXRX 12MBITS 14-HVQFN
- Stock
- 4,203
- In Stock ：
- 4,203
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ST-Ericsson Inc
- Product Category :
- Drivers, Receivers, Transceivers
- Pin Count :
- 14
- Temperature Grade :
- Industrial
- Driver Number of Bits :
- 1
- Input Characteristics :
- DIFFERENTIAL SCHMITT TRIGGER
- Terminal Pitch :
- 0.5mm
- Min Operating Temperature :
- -40°C
- Width :
- 2.5mm
- Packaging :
- Cut Tape (CT)
- ECCN Code :
- EAR99
- Differential Output :
- yes
- Out Swing-Min :
- 2.5 V
- Supply Voltage :
- 1.8V
- Terminal Form :
- NO LEAD
- Output Low Current-Max :
- 0.002A
- Number of Drivers/Receivers :
- 1/1
- Number of Pins :
- 14
- Protocol :
- USB 2.0
- Mount :
- Surface Mount
- Supply Voltage1-Nom :
- 5V
- Length :
- 2.5mm
- Package / Case :
- 14-VFQFN Exposed Pad
- Interface Standard :
- GENERAL PURPOSE
- Number of Transceivers :
- 1
- Type :
- Transceiver
- Number of Terminations :
- 14
- Published :
- 2007
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Receiver Number of Bits :
- 1
- Voltage - Supply :
- 4V~5.5V
- Number of Functions :
- 1
- Max Operating Temperature :
- 85°C
- Mounting Type :
- Surface Mount
- Terminal Position :
- QUAD
- Reach Compliance Code :
- Unknown
- Supply Current-Max :
- 8mA
- RoHS Status :
- RoHS Compliant
- Qualification Status :
- Not Qualified
- Datasheets
- ISP1102BSTM
Drivers, Receivers, Transceivers ST-Ericsson Inc ISP1102BSTM Overview
The ISP1102BSTM, a high-performance USB transceiver from ST-Ericsson Inc, offers a reliable solution for applications requiring USB connectivity. Designed to operate at speeds up to 12 Mbits per second, this integrated circuit ensures efficient data transmission and reception within a compact 14HVQFN package. The product's advanced technology and compatibility with USB 1.1 specifications make it an essential choice for developers looking to integrate USB functionality into their systems. Its small form factor and low power consumption enhance its suitability for portable and space-constrained applications, making the Drivers, Receivers, Transceivers ST-Ericsson Inc ISP1102BSTM an ideal choice for a broad range of electronic devices.
ISP1102BSTM Features
The ISP1102BSTM USB transceiver includes several key features that make it particularly useful in modern electronic designs:
- Support for full-speed (12 Mbits/s) USB operations.
- Low-voltage operation, enhancing its compatibility with mobile and portable devices.
- Compact 14HVQFN packaging for space-sensitive applications.
- Integrated ESD protection, ensuring device reliability and longevity under harsh conditions.
- Automatic attachment and detachment sensing, simplifying USB interface design.
ISP1102BSTM Applications
- Mobile Phones: Used to manage USB data transfer functions, enhancing connectivity and data management between devices.
- Personal Digital Assistants (PDAs): Integrates USB connectivity for syncing data with computers and other devices.
- Portable Media Players: Facilitates USB connections for media transfer and charging capabilities.
- Portable Gaming Consoles: Enables USB-based charging and data exchange, supporting enhanced gameplay experiences.
- Medical Devices: Assures reliable USB communication capabilities in critical medical equipment for data logging and device management.
