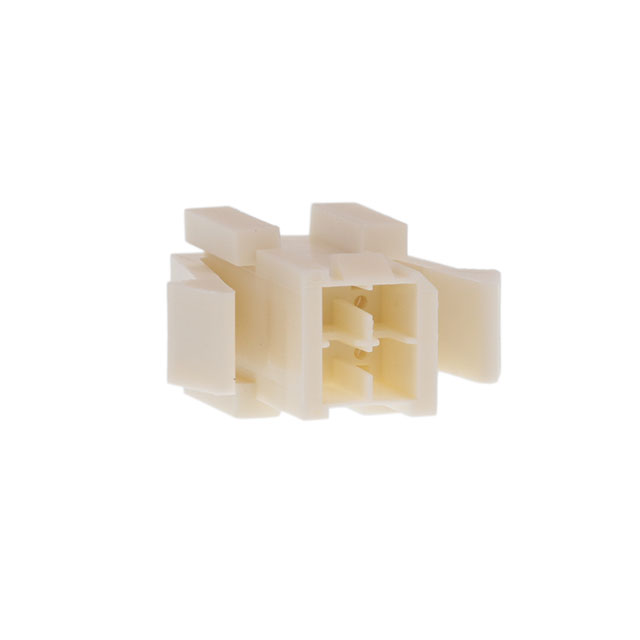

IPR1-02-D
Or copy the link below:
- Mfr.Part #
- IPR1-02-D
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HSG 4POS 2.54MM
- Stock
- 306
- In Stock ：
- 306
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Rectangular Connector Housings
- Wire Size (Min) :
- 30 AWG
- Contact Design :
- PREASSEM CONN
- Mounting Option 2 :
- LOCKING
- ECCN Code :
- EAR99
- RoHS Status :
- ROHS3 Compliant
- Contact Type :
- Male Pin
- Color :
- Natural
- Contact Finish - Mating :
- AU ON NI
- Insulation Resistance :
- 5000000000Ohm
- Mounting Type :
- Panel Mount, Snap-In
- Body Length or Diameter :
- 0.35 inch
- Series :
- Mini Mate® IPR1
- Mounting Option 1 :
- Latch
- Published :
- 2014
- Total Number of Contacts :
- 4
- Contact Resistance :
- 15mOhm
- Insulation Material :
- Nylon
- Body Depth :
- 0.69 inch
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Durability :
- 100 Cycles
- Connector Type :
- RECTANGULAR POWER CONNECTOR
- Note :
- Contacts Not Included
- Reliability :
- COMMERCIAL
- Factory Lead Time :
- 3 Weeks
- Body Breadth :
- 0.38 inch
- Row Spacing :
- 0.100 (2.54mm)
- Contact Termination :
- Crimp
- Polarization Key :
- POLARIZED HOUSING
- Number of Rows :
- 2
- Pitch :
- 0.100 2.54mm
- Contact Material :
- Phosphor Bronze
- Packaging :
- Bulk
- Number of Positions :
- 4
- Datasheets
- IPR1-02-D
2 Rows RECTANGULAR POWER CONNECTOR Bulk Natural 4 Positions Panel Mount, Snap-In Male Pin Crimp Mini Mate® IPR1
IPR1-02-D Overview
It comes in RECTANGULAR POWER CONNECTOR packaging.The device's mounting type is Panel Mount, Snap-In.In order to package the product, a Bulk case is used.It belongs to the Mini Mate® IPR1 Series of products.
IPR1-02-D Features
Mini Mate® IPR1 series
IPR1-02-D Applications
There are a lot of Samtec Inc.
IPR1-02-D Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
