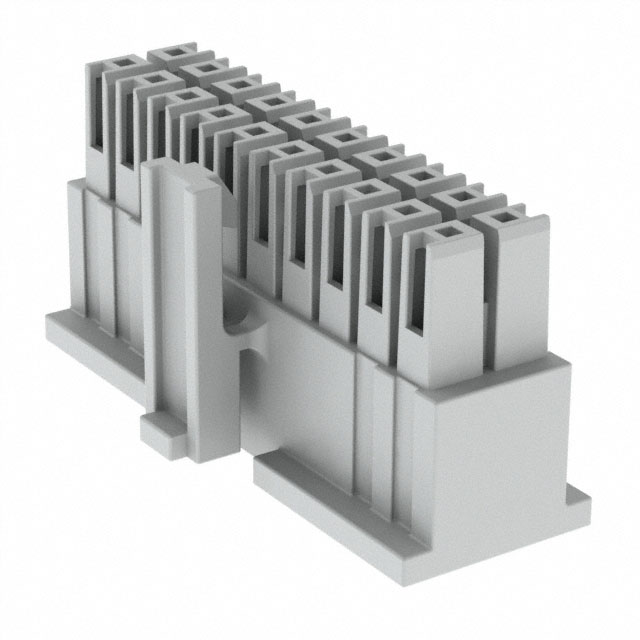

IPD1-10-D

Manufacturer :

Samtec, Inc.

Product Category :

Rectangular Connector Housings

JESD-609 Code :

e3

Mixed Contacts :

No

Body/Shell Style :

PLUG

Factory Lead Time :

3 Weeks

Length :

26.87mm

Color :

White

Option :

GENERAL PURPOSE

REACH SVHC :

No SVHC

Note :

Contacts Not Included

Reliability :

COMMERCIAL

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Fastening Type :

Latch Lock

Max Voltage Rating (AC) :

600V

Row Spacing :

0.100 (2.54mm)

Mounting Type :

Free Hanging (In-Line)

Packaging :

Bulk

Number of Positions :

20

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

IEC Conformance :

No

Pbfree Code :

yes

Max Voltage Rating (DC) :

848V

Total Number of Contacts :

20

Body Breadth :

0.353 inch

Reference Standard :

UL

Max Current Rating :

7.4A

Empty Shell :

No

Series :

Mini Mate® IPD1

Connector Type :

Receptacle

Contact Arrangement :

S0P10

Radiation Hardening :

No

Wire Gauge (Min) :

20 AWG

Housing Material :

Nylon

MIL Conformance :

No

Contact Type :

Female Socket

Shell Material :

ZYTEL 103FHS

Orientation :

Straight

Number of Rows :

2

Contact Material :

Phosphor Bronze

Max Operating Temperature :

125°C

Published :

2008

Mount :

Free Hanging

Additional Feature :

SHROUDED

Depth :

12.83mm

Min Operating Temperature :

-55°C

Wire Gauge (Max) :

30 AWG

Contact Termination :

Crimp

Number of Conductors :

ONE

DIN Conformance :

No

Pitch :

0.100 2.54mm

RoHS Status :

ROHS3 Compliant

Filter Feature :

No
