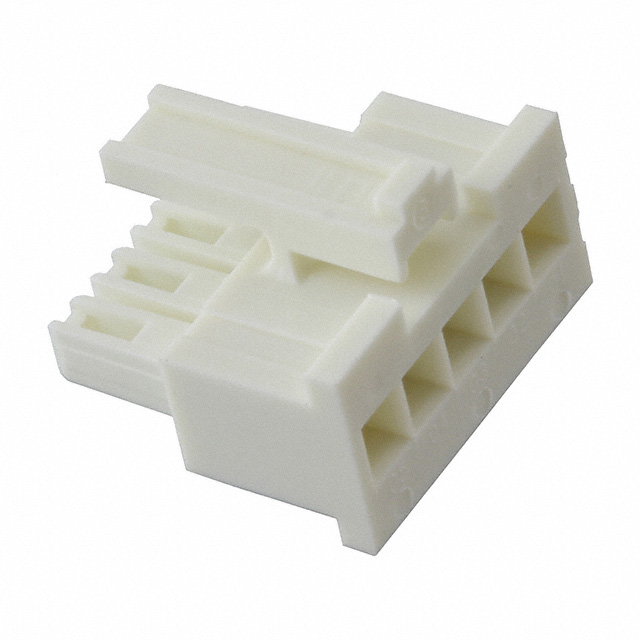

IPD1-05-S-K

Manufacturer :

Samtec, Inc.

Product Category :

Rectangular Connector Housings

Max Voltage Rating (AC) :

600V

Mixed Contacts :

No

Number of Rows :

1

Mounting Type :

Free Hanging (In-Line)

Total Number of Contacts :

5

Wire Gauge (Min) :

20 AWG

JESD-609 Code :

e3

Published :

2013

Feature :

Polarizing Key

Color :

White

Series :

Mini Mate® IPD1

Contact Plating :

Tin

Orientation :

Straight

Empty Shell :

No

Radiation Hardening :

No

Housing Material :

Nylon

REACH SVHC :

No SVHC

Contact Type :

Female Socket

Number of Positions :

5

Filter Feature :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge (Max) :

30 AWG

Fastening Type :

Latch Lock

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

1 Weeks

Max Operating Temperature :

125°C

Contact Termination :

Crimp

Contact Material :

Bronze

Packaging :

Bulk

Additional Feature :

POLARISED

Depth :

12.83mm

Max Current Rating :

7.4A

Pitch :

0.100 2.54mm

Max Voltage Rating (DC) :

848V

Option :

GENERAL PURPOSE

Length :

14.1mm

Connector Type :

Receptacle

ECCN Code :

EAR99

Min Operating Temperature :

-55°C

Gender :

FEMALE

Note :

Contacts Not Included

Pbfree Code :

yes
