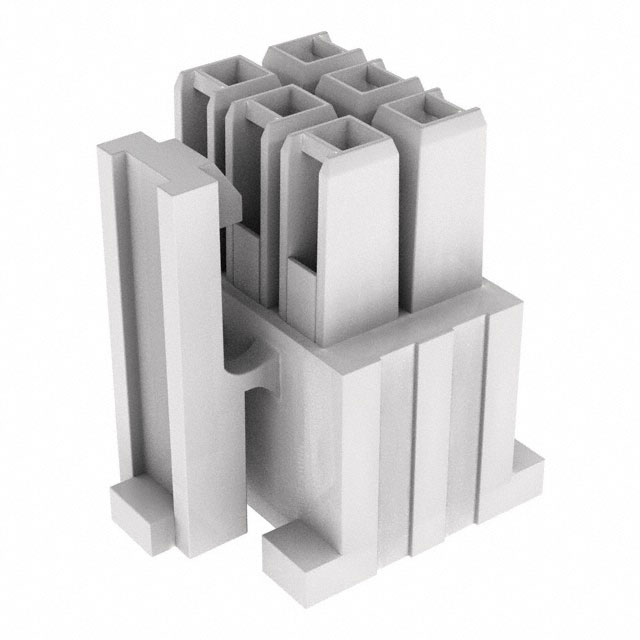

IPD1-03-D

Manufacturer :

Samtec, Inc.

Product Category :

Rectangular Connector Housings

MIL Conformance :

No

Min Operating Temperature :

-55°C

Row Spacing :

0.100 (2.54mm)

Orientation :

Straight

Total Number of Contacts :

6

Depth :

12.83mm

Published :

2004

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

3 Weeks

Length :

9.09mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Pbfree Code :

yes

Housing Material :

Nylon

Fastening Type :

Latch Lock

DIN Conformance :

No

Mount :

Free Hanging

Radiation Hardening :

No

Color :

White

Wire Gauge (Min) :

20 AWG

Packaging :

Bulk

Contact Type :

Female Socket

Contact Termination :

Crimp

Series :

Mini Mate® IPD1

Max Operating Temperature :

125°C

Mounting Type :

Free Hanging (In-Line)

Connector Type :

Receptacle

Max Current Rating :

7.4A

Additional Feature :

SHROUDED

Gender :

FEMALE

Number of Rows :

2

Max Voltage Rating (AC) :

600V

IEC Conformance :

No

Filter Feature :

No

Wire Gauge (Max) :

30 AWG

Shell Material :

ZYTEL 103FHS

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch :

0.100 2.54mm

Option :

GENERAL PURPOSE

Number of Positions :

6

Empty Shell :

No

Note :

Contacts Not Included

Mixed Contacts :

No
