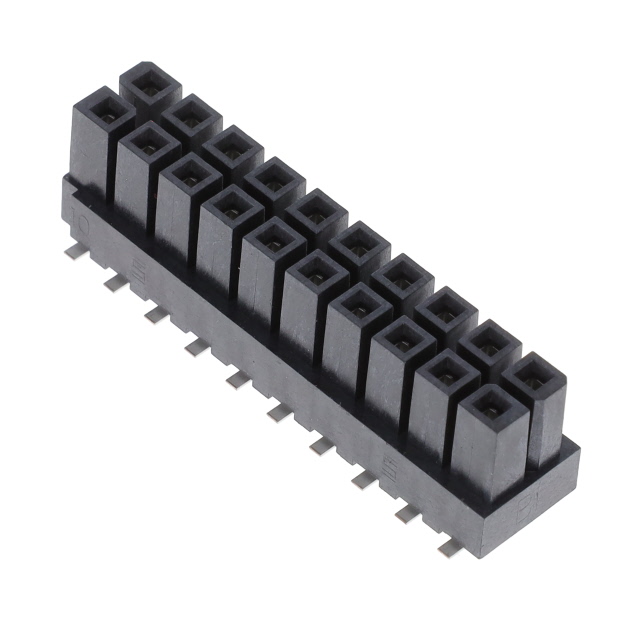

IPBS-110-02-T-D
Or copy the link below:
- Mfr.Part #
- IPBS-110-02-T-D
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- .165" POWER MATE ISOLATED POWER
- Stock
- 460
- In Stock ：
- 460
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Receptacles, Female Sockets
- Published :
- 2012
- Connector Type :
- Header
- Pbfree Code :
- yes
- Filter Feature :
- No
- Number of Positions :
- 20
- Empty Shell :
- No
- IEC Conformance :
- No
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated :
- 400VAC 565VDC
- Series :
- Power Mate® IPBS
- Total Number of Contacts :
- 20
- Contact Finish - Mating :
- Tin
- Row Spacing - Mating :
- 0.165 (4.20mm)
- MIL Conformance :
- No
- JESD-609 Code :
- e3
- Fastening Type :
- Push-Pull
- Factory Lead Time :
- 3 Weeks
- Termination :
- Solder
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Contact Shape :
- Square
- Number of Positions Loaded :
- All
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch - Mating :
- 0.165 4.20mm
- Orientation :
- Straight
- Contact Type :
- Female Socket
- ECCN Code :
- EAR99
- Option :
- GENERAL PURPOSE
- Additional Feature :
- POLARIZED, SHROUDED
- Number of Rows :
- 2
- DIN Conformance :
- No
- Operating Temperature :
- -55°C~105°C
- Style :
- Board to Board
- HTS Code :
- 8536.69.40.30
- Mount :
- Surface Mount
- Contact Material :
- Phosphor Bronze
- Mounting Type :
- Surface Mount
- Radiation Hardening :
- No
- Mixed Contacts :
- No
- Insulation Height :
- 0.480 12.20mm
- REACH SVHC :
- No SVHC
- Gender :
- Male
- Packaging :
- Tube
- Insulation Color :
- Black
- Datasheets
- IPBS-110-02-T-D
IPBS-110-02-T-D Documents
2 Rows Header Solder Phosphor Bronze Surface Mount Tube Tin Liquid Crystal Polymer (LCP) 20 Positions Female Socket
IPBS-110-02-T-D Overview
Currently, it is packaged in Header.The mounting type of the device is Surface Mount.A Tube case is used to package the product.A product of the Power Mate® IPBS Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as POLARIZED, SHROUDED, to name a few.Surface Mount represents the mounting point for the part.-55°C~105°C Operating Temperature is the default operating temperature for the device.
IPBS-110-02-T-D Features
Power Mate® IPBS series
IPBS-110-02-T-D Applications
There are a lot of Samtec Inc.
IPBS-110-02-T-D Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
