INT022ATFT
Or copy the link below:
- Mfr.Part #
- INT022ATFT
- Manufacturer
- Displaytech
- Package / Case
- Datasheet
- Download
- Description
- LCD DISP TFT 2.2" 240X320
- Stock
- 7,303
- In Stock ：
- 7,303
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Displaytech
- Product Category :
- Diagonal Size :
- 2.2 in
- Width :
- 60mm
- Touchscreen :
- No
- Min Operating Temperature :
- -20°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Brightness :
- 200 cd/m^2
- Factory Lead Time :
- 18 Weeks
- Resolution (width) :
- 320 pixel
- Diagonal Screen Size :
- 2.2 55.88mm
- Dot Pixels :
- 240 x 320
- Viewing Area :
- 33.84mm W x 45.12mm H
- Display Mode :
- Transmissive
- Max Operating Temperature :
- 70°C
- Display Type :
- TFT - Color
- Pbfree Code :
- yes
- Operating Supply Voltage :
- 3.5V
- Backlight :
- LED
- Graphics Color :
- Red, Green, Blue (RGB)
- RoHS Status :
- RoHS Compliant
- Published :
- 2011
- Interface :
- Parallel
- Number of Pins :
- 24
- Resolution (height) :
- 240 pixel
- Contrast Ratio :
- 350:1
- Optoelectronic Device Type :
- GRAPHIC DOT MATRIX LCD DISPLAY
- Response Time :
- 30 ms
- Height :
- 61.5mm
- Datasheets
- INT022ATFT
INT022ATFT datasheet pdf and Display Modules - LCD, OLED, Graphic product details from Displaytech stock available at
INT022ATFT Description

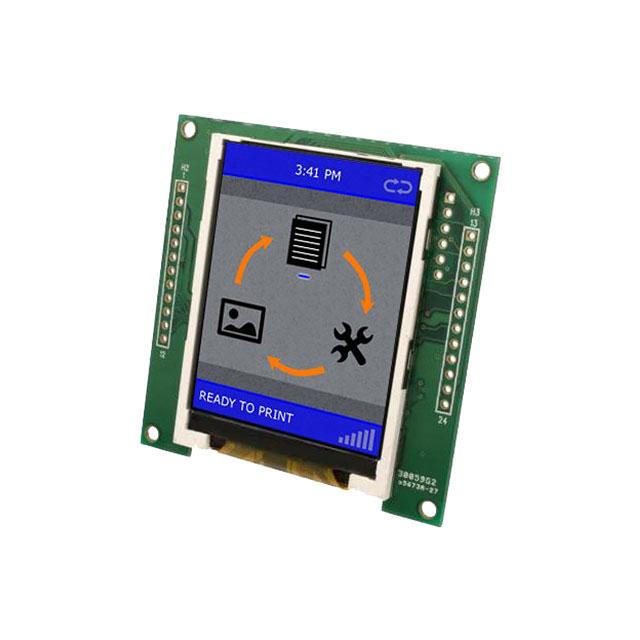

INT022ATFT is an integrated display module based upon a TFT display with 320 x 240RGB resolution. The TFT module is mounted on a PCB on which is mounted an RAIO RA8872 controller with integrated touch screen control and PWM driving circuit for the LED backlight. The TFT module is automatically initialized upon power-up by an onboard controller circuit.
INT022ATFT Features
8080/6800 MCU Interface (1)
Text/Graphic mixed mode
Low-power sleep mode
Embedded 10Kb Character ROM per ISO8859 - 1/2/3/4 with cursor
Screen display rotation
Font vertical rotation
256 User defined 8x16 characters
32 User-defined graphic patterns
Font enlargement x1, x2, x3, x4, horizontal or vertical
Auto initialisation (2)
Embedded PWM control and LED driving circuit for backlight
INT022ATFT Applications
Industrial
Grid infrastructure
Enterprise systems
Enterprise projectors
Personal electronics
Tablets
