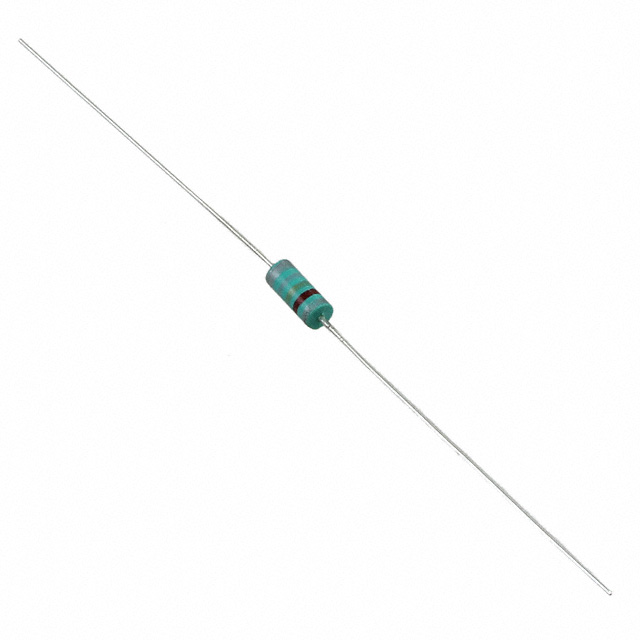

IM02EB150K

Manufacturer :

Vishay / Dale

Product Category :

Fixed Inductors

JESD-609 Code :

e2

Number of Pins :

2

Military Standard :

Not

Current Rating :

150mA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Bulk

Radiation Hardening :

No

ECCN Code :

EAR99

Inductance Tolerance :

10%

Material - Core :

Iron

Q Factor :

40

Max DC Current :

150mA

Lead Diameter :

0.508 mm

Number of Terminations :

2

Published :

2002

Q @ Freq :

40 @ 2.5MHz

Mounting Type :

Through Hole

Terminal Finish :

Tin/Copper (Sn99.3Cu0.7)

Shielding :

No

Terminal Shape :

Wire

Mount :

Through Hole

Size / Dimension :

0.095Diax0.250L 2.41mmx6.35mm

Test Frequency :

2.5MHz

Series :

IM

DC Resistance (DCR) :

2.8Ohm Max

HTS Code :

8504.50.80.00

Quality Factor-Min (at L-nom) :

40

Type :

Molded

Pbfree Code :

yes

Tolerance :

±10%

Lead Length :

36.575mm

Operating Temperature :

-55°C~105°C

REACH SVHC :

Unknown

Package / Case :

Axial

Number of Functions :

1

Inductance :

15μH

Shape/Size Description :

TUBULAR PACKAGE

RoHS Status :

ROHS3 Compliant

DC Current :

150mA

Frequency - Self Resonant :

35MHz
