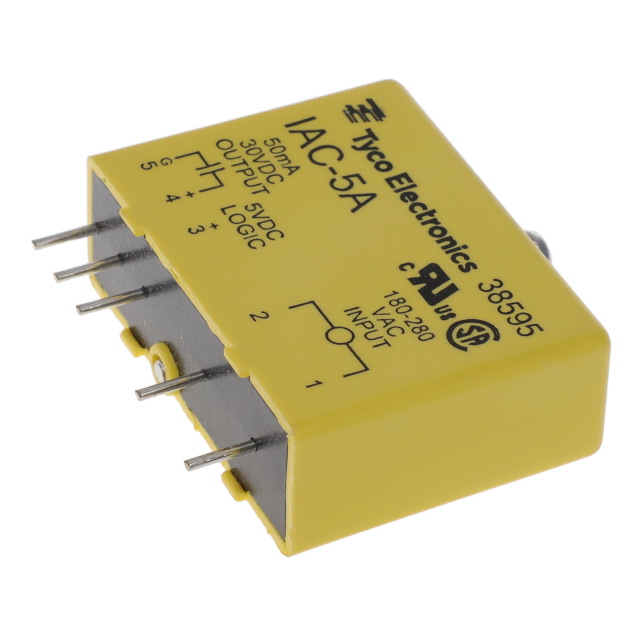

IAC-5A

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

I/O Relay Modules

Output Type :

DC

Load Voltage (Max) :

30VDC

Output Circuit Type :

Transistor

Termination Style :

PC Terminals

Technology :

Electromechanical

Product :

AC Input Modules

HTS Code :

8541.40.95.00

RoHS :

Details

Style :

Standard

Overall Height :

32 mm

Output Voltage :

30 V

Load Current (Max) :

50MA(A)

Product Status :

Active

Input Voltage (Max) :

280VDC/280VAC

Control Voltage :

180 V

Current - Input :

6mA

Reach Compliance Code :

not_compliant

Input Type :

DC/AC

Type :

AC Input Module

Voltage - Input :

180 ~ 280VAC (240VAC Nom)

Terminal Type :

PC Pin

Output Current :

50 mA

Module Type :

Input Module

Operating Temperature Min Deg. C :

-30C

Voltage - Output :

5VDC

Agency Approvals :

UL/CSA

Series :

IAC

Product Weight :

35(g)

Product Type :

I/O Modules

Mounting Style :

Through Hole

Rad Hardened :

No

Case Color :

Yellow

Package :

Bulk

Operating Temperature Max Deg. C :

80C

Brand :

TE Connectivity

Number of Elements :

1

Turn On Time :

20ms

Input Current :

6MA(mA)

Current - Output :

18mA

I/O Isolation Voltage :

4000Vrms

Turn Off Time :

30ms

Features :

Hold Down Screw

Input Voltage :

240VDC/240VAC(V)

Product Category :

I/O Modules

Subcategory :

I/O Modules

Overall Length :

43.2 mm

Input Voltage (Min) :

180VDC/180VAC

Optoelectronic Device Type :

TRANSISTOR OUTPUT SSR

Base Product Number :

IAC

Manufacturer :

TE Connectivity

Color :

Yellow
