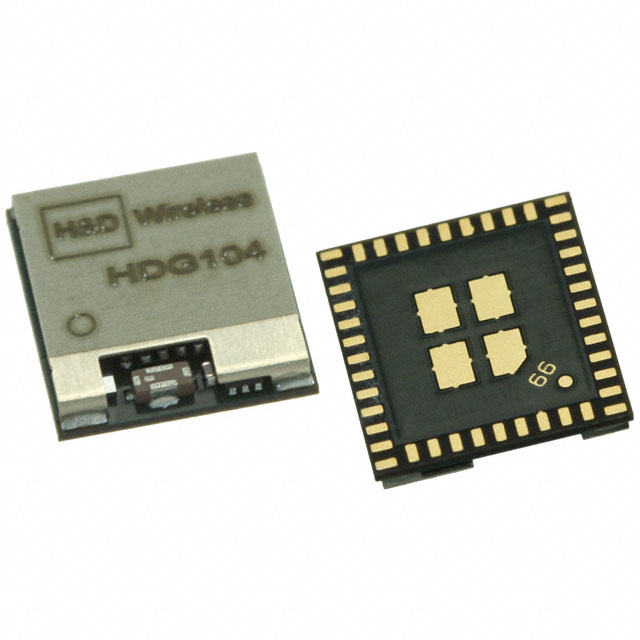

HDG104-DN-2

Manufacturer :

H&D Wireless

Product Category :

RF Transceiver ICs

Memory Size :

1kB EEPROM 160kB SRAM

Max Operating Temperature :

70°C

Interface :

Serial

Packaging :

Tape and Reel (TR)

Voltage - Supply :

2.75V~3.6V

Current - Receiving :

60mA

Supplier Device Package :

44-QFN SIP (7.7x7.1)

Mount :

Surface Mount

Sensitivity :

-96dBm

Package / Case :

44-LQFN Exposed Pad Module

Min Supply Voltage :

3V

Sensitivity (dBm) :

-96 dBm

Mounting Type :

Surface Mount

Serial Interfaces :

SDIO, SPI, UART

RoHS Status :

RoHS Compliant

Type :

TxRx + MCU

Modulation :

16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK

Published :

2009

Data Rate (Max) :

54Mbps

Protocol :

802.11b/g

Frequency :

2.4GHz

Operating Supply Voltage :

3.3V

Min Operating Temperature :

-20°C

Weight :

75.891673mg

Operating Temperature :

-20°C~70°C

Depth :

7.1mm

Current - Transmitting :

15mA

Nominal Supply Voltage (DC) :

3.3V

Length :

7.7mm

RF Family/Standard :

WiFi

Power - Output :

17dBm

REACH SVHC :

No SVHC

Radiation Hardening :

No

Factory Lead Time :

14 Weeks

Max Supply Voltage :

3.6V

Moisture Sensitivity Level (MSL) :

6 (Time on Label)

Max Frequency :

2.5GHz

Number of Pins :

44
