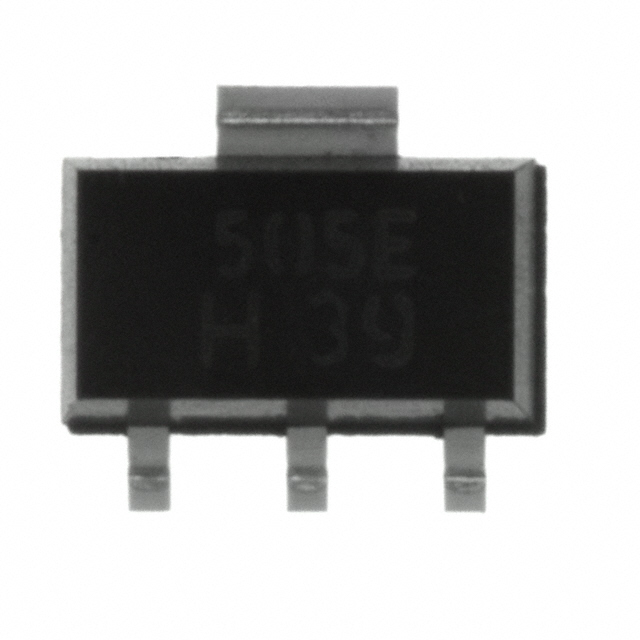

HAL503S-E

Manufacturer :

TDK Micronas

Product Category :

Magnetic Sensors - Switches (Solid State)

Magnetic Field Range-Max :

10 mT

Operating Temperature :

-40°C~140°C TA

Number of Terminations :

3

Hysteresis :

16 mT

Mounting Type :

Surface Mount

Pbfree Code :

No

Body Breadth :

2.5 mm

Sensing Range :

10mT Trip, -10mT Release

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Finish :

Tin/Lead (Sn/Pb)

Magnetic Field Range-Min :

-10 mT

Output Range :

0.13-0.18V

Polarization :

South Pole

Sensing Method :

Hall Effect

Additional Feature :

SHORT CIRCUIT PROTECTION

Packaging :

Tape and Reel (TR)

Voltage - Supply :

3.8V~24V

Feature :

Temperature Compensated

Surface Mount :

yes

Test Condition :

25°C

Max Output Current :

20mA

Termination Type :

Solder

Body Height :

1.5mm

Current - Supply (Max) :

4.2mA

Polarity :

South Pole

Body Length or Diameter :

4.5mm

Output Type :

Open Drain

Power Supplies :

3.8/24V

Function :

Latch

Max Supply Current :

4.2mA

Housing :

Plastic

RoHS Status :

RoHS Compliant

JESD-609 Code :

e0

Package / Case :

TO-243AA, Variant

Series :

HAL® 5xy
