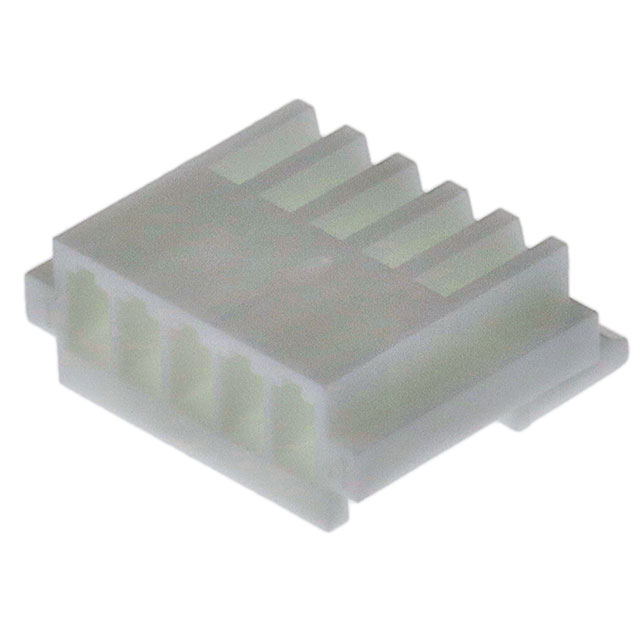

H5P-SHF-AA

Or copy the link below:

Mfr.Part #: H5P-SHF-AA

Manufacturer: JST

Package / Case

Datasheet: Download

Description: CONN RCPT HSG 5POS 2.50MM

Stock: 132,129

In Stock ：: 132,129

Request A Quote(RFQ)

* Fullname:

* Company:

* E-Mail:

Phone:

Comment:

* Quantity:

Manufacturer :: JST
Product Category :: Rectangular Connector Housings

Connector Type :: Receptacle

Pbfree Code :: yes

Packaging :: Bulk

Contact Type :: Female Socket

Factory Lead Time :: 16 Weeks

Published :: 2012

RoHS Status :: RoHS Compliant

Note :: Contacts Not Included

ECCN Code :: EAR99

Total Number of Contacts :: 5

IEC Conformance :: No

Fastening Type :: Latch Lock

Option :: GENERAL PURPOSE

Filter Feature :: No

Mating Information :: MULTIPLE MATING PARTS AVAILABLE

Depth :: 14.7mm

MIL Conformance :: No

Pitch :: 0.098 2.50mm

Mixed Contacts :: No

Number of Rows :: 1

Housing Material :: Nylon

Orientation :: Straight

Number of Positions :: 5

UL Flammability Code :: 94V-0

Mount :: Free Hanging

Color :: Natural

Series :: NH

Width :: 6.4mm

DIN Conformance :: No

Contact Termination :: Crimp

Contact Material :: NOT SPECIFIED

Mounting Type :: Free Hanging (In-Line)

Moisture Sensitivity Level (MSL) :: 1 (Unlimited)

Contact Finish - Mating :: NOT SPECIFIED

Gender :: FEMALE

Length :: 16.2mm

Datasheets: H5P-SHF-AA

Introducing Rectangular Connector Housings JST H5P-SHF-AA from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Free Hanging (In-Line), H5P-SHF-AA pinout, H5P-SHF-AA datasheet PDF, H5P-SHF-AA amp .Beyond Rectangular Connector Housings JST H5P-SHF-AA ,we also offer GHR-05V-S, 1-1123722-3, 0022013037, Our vast inventory has you covered. Contact us now for immediate solutions.

1 Rows Receptacle Bulk Natural 5 Positions Free Hanging (In-Line) Female Socket Crimp NH Nylon

H5P-SHF-AA Overview

The packaging contains Receptacle.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number NH belongs to the NH Series.There is a Free Hanging mount on the part.

H5P-SHF-AA Features

NH series

H5P-SHF-AA Applications

There are a lot of JST Sales America Inc.
H5P-SHF-AA Rectangular Connectors applications.

Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
