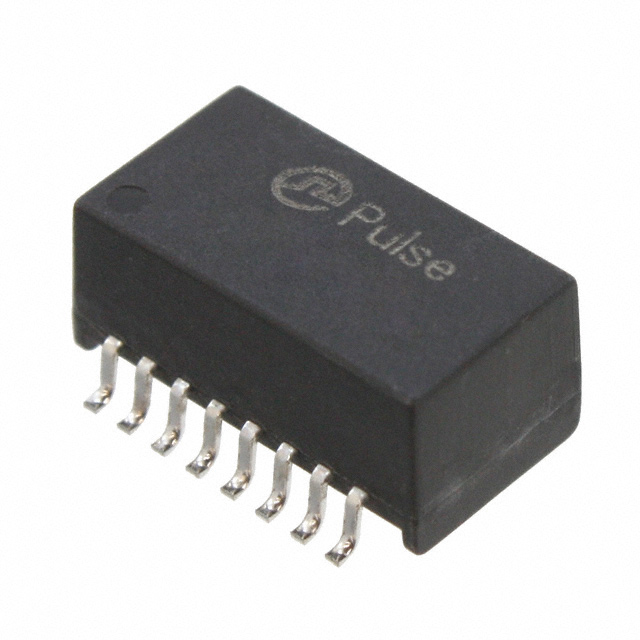

H2019FNL

Manufacturer :

Pulse Electronics

Product Category :

Pulse Transformers

Length :

12.7 mm

Series :

-

Operating Temperature Max Deg. C :

70C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insertion Loss :

-1.2(dB)

Rad Hardened :

No

Package :

Bulk

Maximum Operating Temperature :

+ 70 C

Minimum Operating Temperature :

0 C

Number of Channels :

Single

Depth :

9.53mm

Type :

Module

Termination Style :

SMD/SMT

Brand :

Pulse Electronics

Lead/Base Style :

Gull wing

Reach Compliance Code :

Compliant

Product :

LAN

Operating Temperature :

0°C~70°C

Isolation Voltage :

1.5kV

Turns Ratio - Primary:Secondary :

1:1

Product Length (mm) :

12.7(mm)

Shielding :

Unshielded

Radiation Hardening :

No

Manufacturer :

Pulse

Frequency Range :

100 kHz to 100 MHz

Packaging :

Rail/Tube

Published :

2013

Product Type :

Audio and Signal Transformers

Mount :

Surface Mount

Inductance :

350μH

Product Height (mm) :

6(mm)

Product Category :

Audio Transformers / Signal Transformers

ET (Volt-Time) :

-

Package / Case :

SMD/SMT

Product Length :

12.7 mm

Operating Temperature Min Deg. C :

0C

Width :

9.53 mm

Return Loss :

-12 dB

Product Depth (mm) :

9.53(mm)

Pin Count :

16

Product Status :

Active

Factory Lead Time :

11 Weeks

Package Type :

16SMD

Subcategory :

Transformers

Mounting :

Surface Mount

ECCN Code :

EAR99

Number of Pins :

16

Height Seated (Max) :

0.236 5.99mm

RoHS :

Details

Transformer Type :

LAN 10G Base-T

Size / Dimension :

0.500Lx0.358W 12.70mmx9.09mm

Operating Temp Range :

0C to 70C

Supplier Package :

SMD

Weight :

-

Lead Style :

Gull wing

Height :

6mm

Turns Ratio :

1:1

Height - Seated (Max) :

0.236 (5.99mm)

RoHS Status :

RoHS Compliant

Application :

100 Base-TX PoE

Insertion Loss (dB) :

-1.2 dB

Mounting Type :

Surface Mount
