Mfr.Part #
H2005ANLT
Manufacturer
Pulse Electronics
Package / Case
SMD/SMT
Datasheet
Download
Description
XFRMR MAGNT MOD 2PORT POE 10/100
Stock
8,046
In Stock :
8,046

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Pulse Electronics
Product Category :
Pulse Transformers
Additional Feature :
HEIGHT DIM INCLUDES TERMINALS ALSO
Mounting Type :
Surface Mount
Turns Ratio :
1:1
DC Resistance (DCR) :
3.5Ohm
Minimum Operating Temperature :
0 C
Size / Dimension :
0.510Lx0.600W 12.95mmx15.24mm
Physical Dimension :
15.24mm X 12.95mm X 7.11mm
Surface Mount :
yes
RoHS :
Details
Mounting Feature :
Surface Mount
Shielding :
Unshielded
Turns Ratio - Primary:Secondary :
1:1
Packaging :
Tape and Reel (TR)
Length :
12.95 mm
RoHS Status :
RoHS Compliant
Weight :
0.1oz 2.85g
Inductance :
--
Package / Case :
SMD/SMT
ET (Volt-Time) :
-
Package :
Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
Application :
10/100 BASE-TX; ETHERNET
Number of Pins :
24
Pin Count :
24
Number of Functions :
2
Type :
Module
Height - Seated (Max) :
0.290 (7.36mm)
Radiation Hardening :
No
Mount :
Surface Mount
Secondary Impedance :
1 Ohms
Frequency Range :
1 MHz to 100 MHz
Number of Channels :
Dual
Operating Temperature :
0°C~70°C
Lead/Base Style :
Gull wing
Height :
7.36mm
Brand :
Pulse Electronics
Height Seated (Max) :
0.290 7.36mm
Width :
12.95mm
Product Status :
Active
Product Type :
Audio and Signal Transformers
Product Category :
Audio Transformers / Signal Transformers
Published :
2005
Subcategory :
Transformers
Manufacturer :
Pulse
Maximum Operating Temperature :
+ 70 C
Termination Style :
SMD/SMT
Primary Impedance :
1 Ohms
Factory Lead Time :
13 Weeks
Series :
--
Moisture Sensitivity Level (MSL) :
3 (168 Hours)
Depth :
15.24mm
Product Length :
12.95 mm
ECCN Code :
EAR99
Packing Method :
Tape and Reel
Product :
LAN
Lead Style :
Gull wing
Reach Compliance Code :
Compliant
Insertion Loss (dB) :
-1.2 dB
Mounting :
Surface Mount
Transformer Type :
Isolation and Data Interface (Encapsulated)
Isolation Voltage :
1.5kV
Return Loss :
-12 dB
Pbfree Code :
yes
Introducing Pulse Transformers Pulse Electronics H2005ANLT from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Surface Mount, Package / Case:SMD/SMT, Number of Pins:24, Type:Module, Number of Channels:Dual, Operating Temperature:0°C~70°C, H2005ANLT pinout, H2005ANLT datasheet PDF, H2005ANLT amp .Beyond Pulse Transformers Pulse Electronics H2005ANLT ,we also offer B78476A8245A003, PT61020EL, SM13072APEL, Our vast inventory has you covered. Contact us now for immediate solutions.

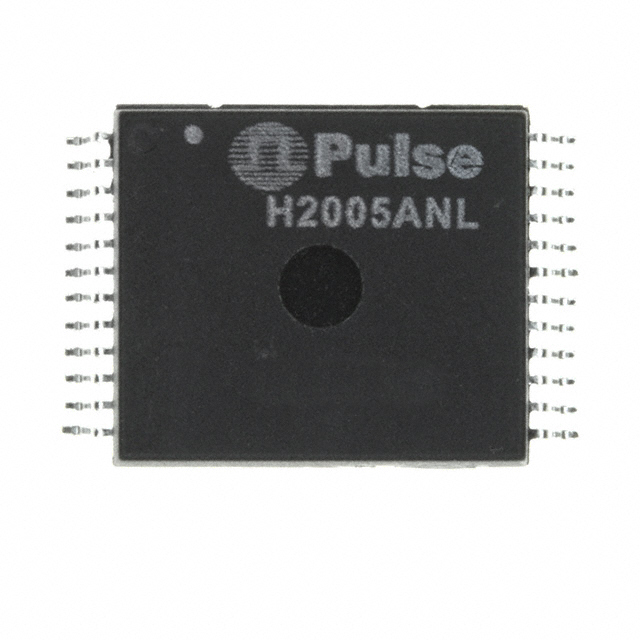

Pulse Electronics H2005ANLT
