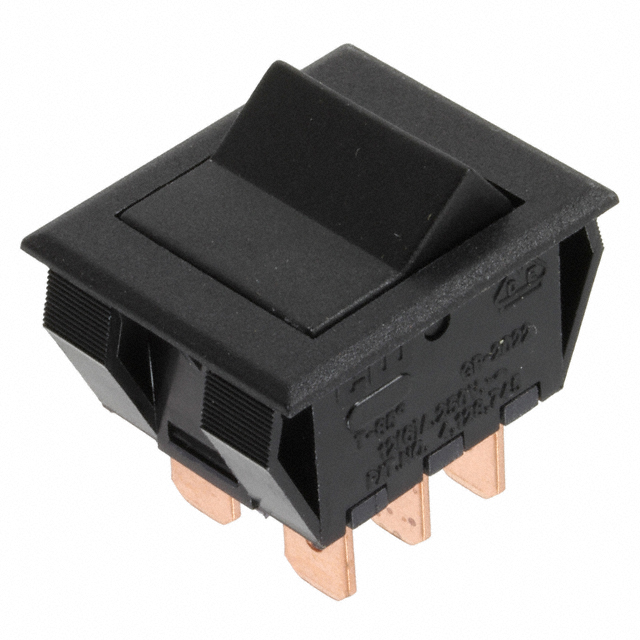

GR-2022-0010
Or copy the link below:
- Mfr.Part #
- GR-2022-0010
- Manufacturer
- CW Industries
- Package / Case
- 125
- Datasheet
- Download
- Description
- SWITCH ROCKER DPDT 16A 125V
- Stock
- 10,131
- In Stock ：
- 10,131
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CW Industries
- Product Category :
- Contact (AC) Max Power Rating R Load :
- 0.75HP@250VAC
- Contact Current(AC)-Max :
- 12A
- Panel Cutout Dimensions :
- Rectangular - 27.20mm x 22.15mm
- Circuit :
- DPDT
- Switch Type :
- ROCKER SWITCH
- Series :
- 2000
- Length - Termination :
- 0.37 inch
- Actuator Type :
- Concave (Standard V)
- Color - Actuator/Cap :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact (AC) Max Rating R Load :
- 12A@250VAC
- Packaging :
- Bulk
- Dielectric Withstanding Voltage :
- 2500VAC V
- Contact Voltage(AC)-Max :
- 250V
- Termination Style :
- Quick Connect - 0.250 (6.3mm)
- Center Contact Plating :
- Silver
- Electrical Life :
- 25,000 Cycles
- Actuator Material :
- Nylon
- Insulation Resistance :
- 1000000000Ohm
- Contact Resistance :
- 0.01mOhm
- Mount :
- Panel, Snap in
- Housing Material :
- Nylon
- Body Length or Diameter :
- 26.924mm
- Mounting Type :
- Panel Mount, Snap-In
- Termination :
- Quick Connect
- Factory Lead Time :
- 12 Weeks
- Terminal Material :
- Copper
- Actuator Marking :
- No Marking
- Mechanical Life :
- 25,000 Cycles
- Current Rating (Amps) :
- 16A AC
- Actuator Length :
- 0.25 inch
- Center Contact Material :
- COPPER ALLOY
- Operating Temperature :
- -20°C~105°C
- RoHS Status :
- ROHS3 Compliant
- Switch Function :
- On-On
- Package / Case :
- 125
- Current Rating :
- 16A
- Voltage - Rated AC :
- 125V
- Body Breadth :
- 21.9964 mm
- Datasheets
- GR-2022-0010
