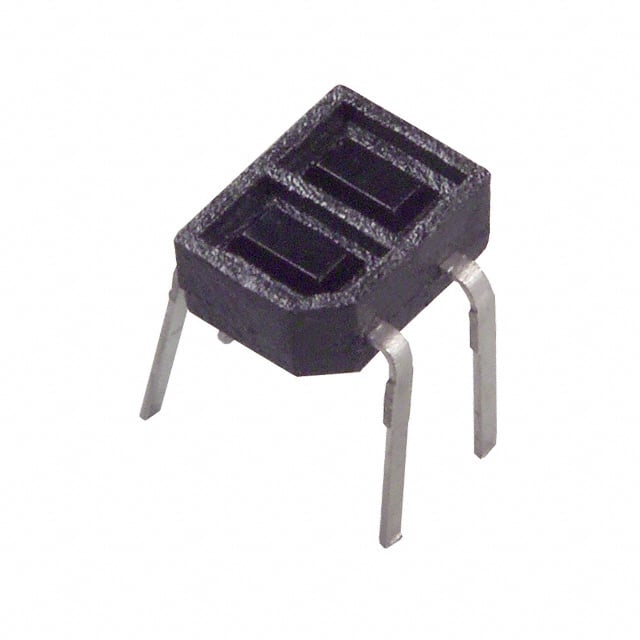

GP2S24J0000F

Manufacturer :

Sharp Microelectronics

Product Category :

Optical Sensors - Reflective - Analog Output

Packaging :

Tube

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Breadth :

3 mm

Mount :

Through Hole

RoHS Status :

RoHS Compliant

Lead Free :

Lead Free

Number of Pins :

4

Sensing Method :

Reflective

Published :

2006

Forward Voltage :

1.2V

Sensing Distance :

0.028 (0.7mm)

Reverse Breakdown Voltage :

6V

Reach Compliance Code :

Unknown

Termination Type :

Solder

Terminal Finish :

Tin/Copper (Sn/Cu)

Power Dissipation :

100mW

Reverse Voltage :

6V

JESD-609 Code :

e2

Housing :

Plastic

Response Time :

20μs, 20μs

Max Collector Current :

20mA

Forward Current :

20mA

Output Type :

Phototransistor

Collector Emitter Breakdown Voltage :

35V

Operating Temperature :

-25°C~85°C

Rise Time :

20μs

Collector Emitter Voltage (VCEO) :

35V

Number of Elements :

1

Additional Feature :

2V VCE

Current - DC Forward (If) (Max) :

50mA

Sensors/Transducers Type :

LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE

Package / Case :

PCB Mount

Wavelength :

950 nm

Measurement Range-Max :

0.7 mm

Fall Time (Typ) :

20 μs

Mounting Type :

Through Hole
