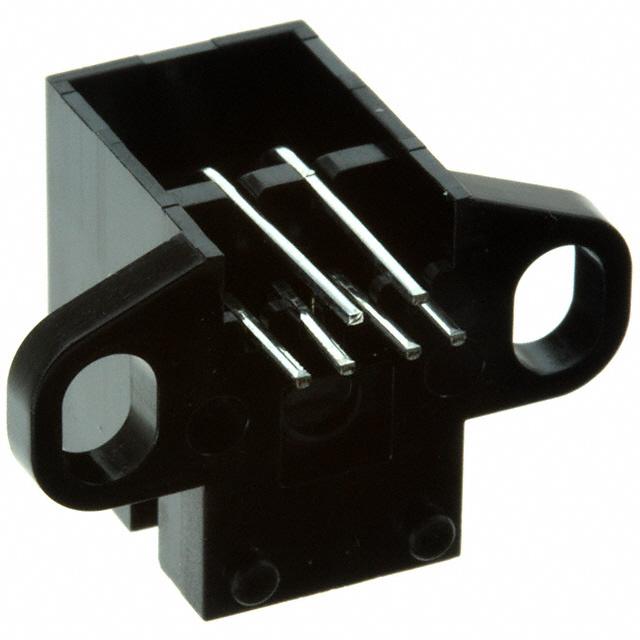

GP1A038RBKLF

Manufacturer :

Sharp Microelectronics

Product Category :

Optical Sensors - Photointerrupters - Slot Type - Logic Output

Response Time :

1μs

JESD-609 Code :

e1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Configuration :

NPN - Open Collector

Reverse Voltage :

4V

Rise Time :

2μs

RoHS Status :

RoHS Compliant

Sensing Method :

Through-Beam

Published :

1998

Series :

OPIC™

Sensing Distance :

0.067 (1.7mm)

Number of Pins :

6

Voltage - Supply :

2.7V~5.5V

Power Dissipation :

150mW

Mounting Type :

Through Hole

Package / Case :

PCB Mount

Min Operating Temperature :

-10°C

Fall Time (Typ) :

2 μs

Max Operating Temperature :

70°C

Mount :

Screw, Through Hole

Optoelectronic Device Type :

LINEAR POSITION ENCODER

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Number of Elements :

1

Reverse Breakdown Voltage :

4V

Reach Compliance Code :

Unknown

Number of Functions :

1

Lead Free :

Lead Free

Operating Supply Current :

5mA

Forward Current :

50mA
