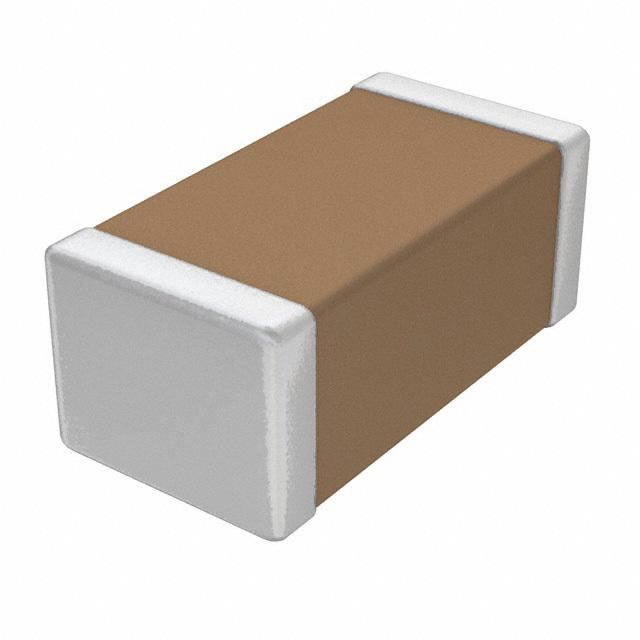

GMC10CG0R5C100NT

Manufacturer :

CAL-CHIP ELECTRONICS INC.

Product Category :

Ceramic Capacitors

ECCN Code :

EAR99

Voltage - Rated :

100V

Capacitance :

0.5 pF

Ratings :

-

Reach Compliance Code :

Compliant

Width :

0.8 mm

Surface Mount :

yes

Negative Tolerance :

50%

Mounting Feature :

Surface Mount

Package Shape :

RECTANGULAR PACKAGE

HTS Code :

8532.24.00.20

Package :

Tape and Reel (TR)

Rated (DC) Voltage (URdc) :

100 V

Thickness (Max) :

0.035 (0.90mm)

Lead Style :

-

JESD-609 Code :

e3

Multilayer :

yes

Product Status :

Active

Length :

1.6 mm

Terminal Shape :

WRAPAROUND

Temperature Coefficient :

C0G, NP0

Tolerance :

±0.25pF

Applications :

GENERAL PURPOSE

Height - Seated (Max) :

-

Pbfree Code :

yes

Size Code :

0603

Packing Method :

TR, CARDBOARD, 7/13 INCH

Package / Case :

0603 (1608 Metric)

Manufacturer :

Cal-Chip Electronics

Operating Temperature :

-55°C ~ 125°C

Mounting Type :

Surface Mount, MLCC

Number of Terminals :

2

Positive Tolerance :

50%

Series :

GMC

Capacitor Type :

CERAMIC CAPACITOR

Size / Dimension :

0.063 L x 0.031 W (1.60mm x 0.80mm)

Features :

-

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

Height :

0.8 mm

Dielectric Material :

Ceramic

Temperature Characteristics Code :

C0G

Lead Spacing :

-
