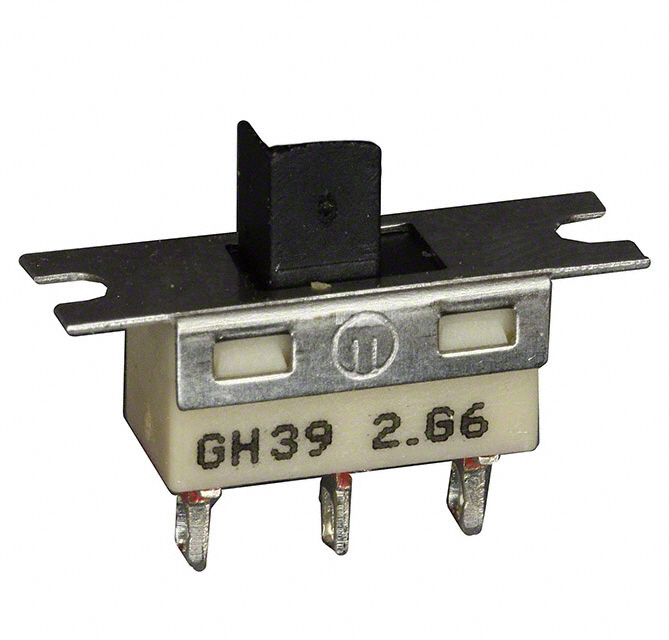

GH39S010001

Manufacturer :

APEM Inc.

Product Category :

Insulation Material :

Thermoplastic

Contact Current(DC)-Max :

3A

Solderability :

WAVE

Contact (AC) Max Rating R Load :

4A@125VAC

Current Rating :

3A

Contact Timing :

NOT SPECIFIED

Switch Travel :

2.20mm

Max Voltage Rating (AC) :

250V

Factory Lead Time :

9 Weeks

Switch Type :

SLIDE SWITCH

Mount :

Panel, Solder

Termination :

Solder

Mounting Type :

Panel Mount

Actuator Length :

5.10mm

Contact (DC) Max Rating R Load :

3A@30VDC

Length - Termination :

0.165 inch

JESD-609 Code :

e4

Packaging :

Bulk

Washability :

Partial

Contact Resistance :

10MOhm

Max Voltage Rating (DC) :

30V

Termination Style :

Solder Lug

Body Height :

6.35mm

Insulation Resistance :

1000000000Ohm

Operating Temperature :

-30°C~85°C

Switch Function :

On-Off-On

Voltage - Rated DC :

30V

Orientation :

Vertical

Actuator Material :

Polyamide (PA), Nylon, Glass Filled

ECCN Code :

EAR99

Sealing :

EPOXY TERMINAL SEALED

Series :

G

Body Length or Diameter :

12.7mm

Pbfree Code :

yes

RoHS Status :

ROHS3 Compliant

Circuit :

SPDT

Feature :

Epoxy Sealed Terminals

Number of Positions :

2

Current Rating (Amps) :

3A DC

Housing Material :

Stainless Steel

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

Silver (Ag)

Electrical Life :

20,000 Cycles

HTS Code :

8536.50.90.50

Dielectric Withstanding Voltage :

1000VRMS V

Contact Current(AC)-Max :

4A

Body Breadth :

5.8 mm

Actuator Type :

Standard
