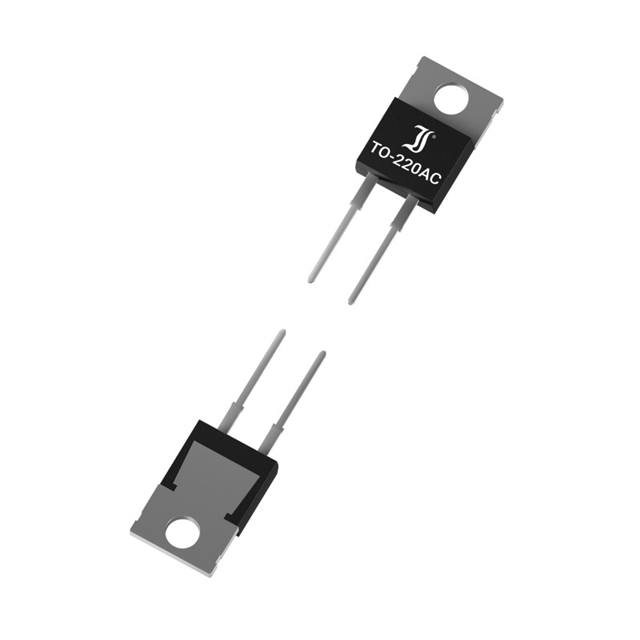

FT2000KB

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Rectifiers - Single

RoHS Status :

Yes with exemptions

Output Current-Max :

20 A

Tab :

Tab

Peak Reverse Current (uA) :

5

Peak Reverse Repetitive Voltage (V) :

100

Peak Non-Repetitive Surge Current (A) :

385

Mounting :

Through Hole

Peak Forward Voltage (V) :

0.96

Non-rep Pk Forward Current-Max :

390 A

Diode Type :

RECTIFIER DIODE

Peak Reverse Recovery Time (ns) :

200

Supplier Package :

TO-220AC

Maximum Continuous Forward Current (A) :

20

Maximum Operating Temperature (°C) :

200

Reverse Recovery Time-Max :

0.2 μs

Terminal Form :

THROUGH-HOLE

JESD-30 Code :

R-PSFM-T2

Rep Pk Reverse Voltage-Max :

100 V

PCB changed :

2

Diode Element Material :

SILICON

ECCN Code :

EAR99

HTS :

8541.10.00.80

Supplier Temperature Grade :

COMMERCIAL

Military :

No

Case Connection :

CATHODE

Application :

GENERAL PURPOSE

Configuration :

Single

Subcategory :

Rectifier Diodes

Number of Phases :

1

Peak Reflow Temperature (Cel) :

260

Reach Compliance Code :

Compliant

Qualification Status :

Not Qualified

Package Height :

8.7

ECCN (US) :

EAR99

Packaging :

Tube

Package Shape :

RECTANGULAR

Surface Mount :

No

JEDEC-95 Code :

TO-220AC

Package Length :

10.1

Manufacturer :

Diotec Semiconductor AG

Number of Elements :

1

Pin Count :

2

HTS Code :

8541.10.00.80

Package Width :

4.5

Minimum Operating Temperature (°C) :

-50

Terminal Position :

Single

Type :

Switching Diode

Number of Terminals :

2
