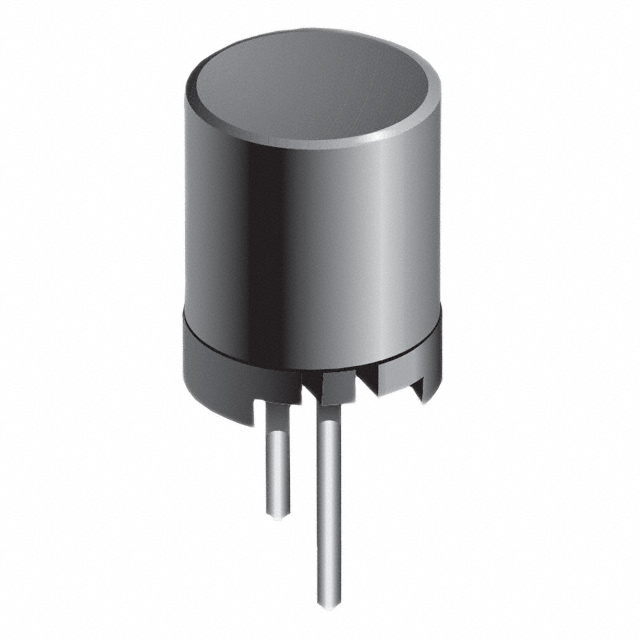

FSR1013-332KL

Manufacturer :

Bourns, Inc.

Product Category :

Fixed Inductors

Packaging :

Bulk

Height :

13.5mm

Military Standard :

Not

Mount :

Through Hole

Q @ Freq :

30 @ 252kHz

Test Frequency :

1kHz

Series :

FSR1013

Number of Terminations :

2

Frequency - Self Resonant :

350kHz

Size / Dimension :

0.413Dia 10.50mm

Package / Case :

Radial, Vertical Cylinder

Factory Lead Time :

18 Weeks

Quality Factor-Min (at L-nom) :

30

DC Resistance (DCR) :

12Ohm Max

Material - Core :

Ferrite

RoHS Status :

ROHS3 Compliant

Q Factor :

30

Type :

Wirewound

DC Current :

85mA

Lead Pitch :

5mm

Max DC Current :

85mA

Shielding :

yes

Tolerance :

±10%

Terminal Finish :

Matte Tin (Sn)

Pbfree Code :

yes

Inductance :

3.3mH

Lead Diameter :

0.7 mm

Radiation Hardening :

No

HTS Code :

8504.50.80.00

Height Seated (Max) :

0.532 13.50mm

Shape/Size Description :

CYLINDRICAL PACKAGE

Operating Temperature :

-40°C~105°C

JESD-609 Code :

e3

Published :

2005

Current Rating :

85mA

Number of Functions :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Through Hole

Lead/Base Style :

Radial

Inductor Application :

RF INDUCTOR

ECCN Code :

EAR99

Special Feature :

Q MEASURED AT 0.252 MHZ
