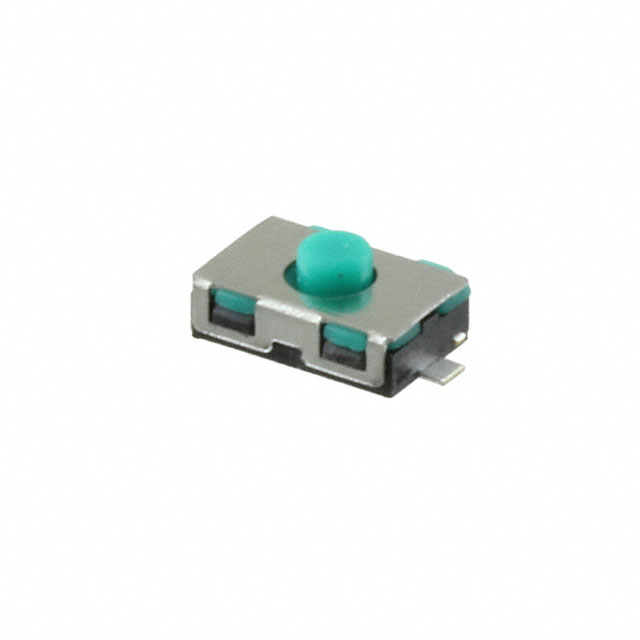

FSMSMLPAATR

Manufacturer :

TE Connectivity ALCOSWITCH Switches

Product Category :

Current Rating :

50 mA

Height (Max) :

0.146 (3.70mm)

Sensitivity :

-30dB ±3dB

Minimum Operating Temperature :

- 35 C

Illumination Type, Color :

--

Series :

MW

Manufacturer :

TE Connectivity

Illumination :

Non-Illuminated

Actuator Orientation :

Top Actuated

Operating Force :

520gf

Direction :

Omnidirectional

Operating Temperature Range :

- 35 C to + 105 C

Termination :

PC Pins

Circuit :

SPST-NO

Ratings :

IP67 - Dust Tight, Waterproof

Shape :

Circular

Product Category :

Tactile Switches

Lamp Type :

-

Voltage - Rated :

2 V

Product Status :

Active

Contact Form :

SPST

Features :

--

Outline :

6.00mm x 4.00mm

Size / Dimension :

0.283 Dia (7.20mm)

Packaging :

Tape and Reel (TR)

Actuator Height off PCB, Vertical :

2.50mm

Frequency Range :

50 Hz ~ 16 kHz

Port Location :

Top

Current - Supply :

500 µA

Mounting Type :

Surface Mount

Mounting Style :

SMD/SMT

Actuator Length, Right Angle :

--

Impedance :

2.2 kOhms

Product Type :

Tactile Switches

Actuator :

Round

Termination Style :

Gull wing

Base Product Number :

FSMS

Subcategory :

Switches

Operating Temperature :

-40°C ~ 85°C

Package :

Box

Mechanical Life :

100,000 Cycles

Brand :

TE Connectivity / Alcoswitch

Switch Travel :

0.50mm

RoHS :

Details

Illumination Voltage (Nominal) :

--

Switch Function :

Off-Mom

Maximum Operating Temperature :

+ 105 C

Illumination Color :

-

Actuator Type :

Standard

S/N Ratio :

60dB

Voltage Range :

1 V ~ 10 V

Type :

Electret Condenser

Ingress Protection :

--

Output Type :

Analog

Contact Rating @ Voltage :

0.05A @ 32VDC

Actuator Material :

Silicon Rubber
