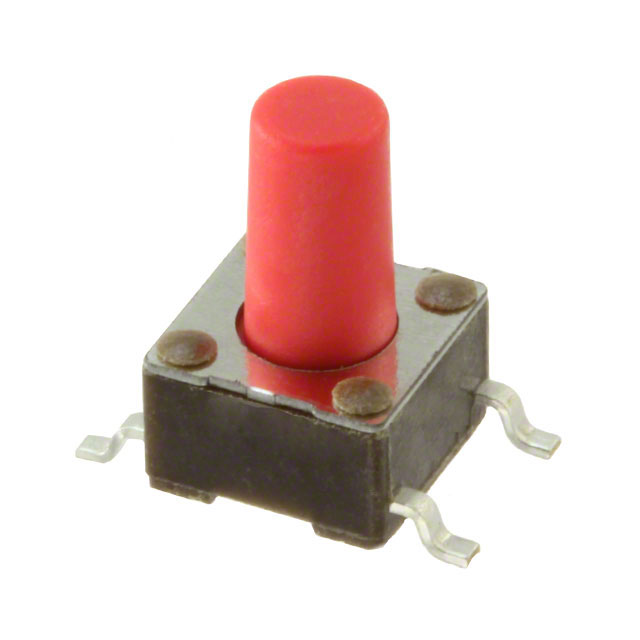

FSM8JSMAASTR

Manufacturer :

TE Connectivity ALCOSWITCH Switches

Product Category :

Packing Method :

Tape and Reel

Switch Action :

Momentary

Termination Style :

Gull wing

Actuator Height off PCB, Vertical :

9.50mm

Pole Throw Configuration :

SPST

Terminal Type :

Gull wing

HTS Code :

8536.50.90.31

Product Length (mm) :

6(mm)

Surface Mount :

No

Mounting Style :

Surface Mount

Voltage Rating (VDC) :

24(V)

Switch Function Configuration :

OFF ON

Actuator Length, Right Angle :

--

Product Status :

Active

Contact Voltage(DC)-Max :

24 V

Contact Current(DC)-Max :

0.05 A

Actuator Color :

Pink

Illumination Type, Color :

--

Electrical Life :

1000000 Cycle(s)

Features :

--

Actuator Type :

Standard

Packaging :

Tape and Reel (TR)

Current Rating (Max) :

0.05(A)

Outline :

6.00mm x 6.00mm

Operating Temperature :

-40°C ~ 105°C

Actuator Orientation :

Top Actuated

Mounting Feature :

SURFACE MOUNT-STRAIGHT

Switch Type :

PUSHBUTTON SWITCH

Operating Force-Max :

3.04 N

Body Breadth :

6 mm

Circuit :

SPST-NO

Mounting Type :

Surface Mount

Type :

Micro-Miniature

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Series :

FSMJSMA

Actuator Length (mm) :

5.9(mm)

Illumination Voltage (Nominal) :

--

Subcategory :

Switches

Ingress Protection :

--

Manufacturer :

TE Connectivity

Contact Rating @ Voltage :

0.05A @ 24VDC

Switch Function :

Off-Mom

Terminal Finish :

Silver (Ag)

Termination Type :

Solder

Mechanical Life :

1,000,000 Cycles

Body Height :

9.5 mm

Illumination Type :

Not Required

Switch Travel :

0.25mm

Product Depth (mm) :

10(mm)

ECCN Code :

EAR99

Reach Compliance Code :

Compliant

JESD-609 Code :

e4

Product Height (mm) :

9.5(mm)

Operating Temp Range :

-40C to 105C

Contact Plating :

Silver

Body Length or Diameter :

6 mm

Contact Material :

Stainless Steel

Actuator Style :

Round Button

Illumination :

Non-Illuminated

Product Type :

Pushbutton Switches

Body Orientation :

Straight

Base Product Number :

FSM8

Brand Name :

Alcoswitch

Actuator Material :

Polyamide (PA), Nylon

Operating Force :

260gf
