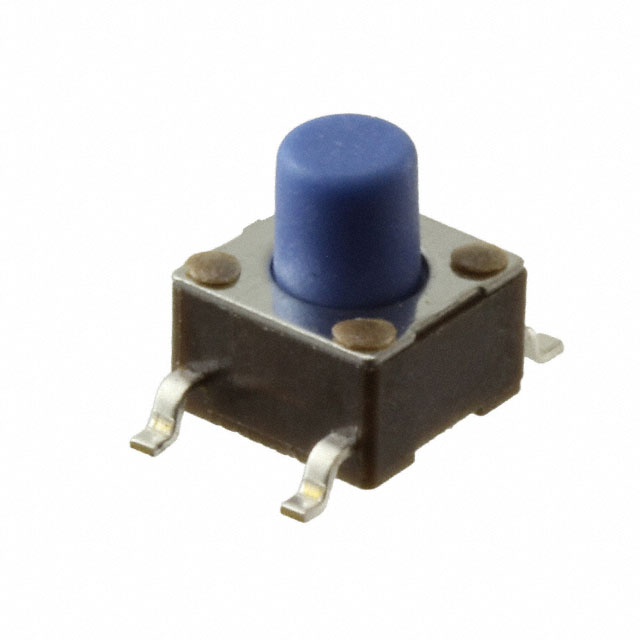

FSM6JSMLSTR

Manufacturer :

TE Connectivity ALCOSWITCH Switches

Product Category :

Product Type :

Pushbutton Switches

Actuator Length (mm) :

3.41(mm)

Product Height (mm) :

7.01(mm)

Operating Temp Range :

-40C to 105C

Contact Plating :

Silver

JESD-609 Code :

e4

Termination Style :

Gull wing

Packing Method :

Tape and Reel

Actuator Color :

Blue

Body Orientation :

Straight

Switch Function :

Off-Mom

Operating Force-Max :

1.27 N

Pole Throw Configuration :

SPST

Subcategory :

Switches

Contact Current(DC)-Max :

0.05 A

Contact Rating @ Voltage :

0.05A @ 24VDC

Reach Compliance Code :

Compliant

Switch Action :

Momentary

Terminal Type :

Gull wing

Body Height :

7.01 mm

Illumination Voltage (Nominal) :

--

Switch Function Configuration :

OFF ON

Actuator Type :

Standard

Operating Force :

100gf

Body Breadth :

6 mm

Features :

--

Mounting Style :

Surface Mount

Illumination Type, Color :

--

Mechanical Life :

1,000,000 Cycles

Contact Material :

Stainless Steel

Series :

FSMJSML

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Ingress Protection :

--

Type :

Micro-Miniature

Illumination :

Non-Illuminated

Mounting Type :

Surface Mount

Switch Travel :

0.25mm

Packaging :

Tape and Reel (TR)

Actuator Orientation :

Top Actuated

Base Product Number :

FSM6

Actuator Length, Right Angle :

--

Operating Temperature :

-40°C ~ 105°C

HTS Code :

8536.50.90.31

Product Length (mm) :

6(mm)

Actuator Material :

Polyamide (PA), Nylon

Circuit :

SPST-NO

Actuator Height off PCB, Vertical :

7.00mm

Product Status :

Active

Actuator Style :

Round Button

Brand Name :

Alcoswitch

Body Length or Diameter :

6 mm

Product Depth (mm) :

10(mm)

Illumination Type :

Not Required

Current Rating (Max) :

0.05(A)

Surface Mount :

No

Voltage Rating (VDC) :

24(V)

Terminal Finish :

Silver (Ag)

ECCN Code :

EAR99

Manufacturer :

TE Connectivity

Contact Voltage(DC)-Max :

24 V

Outline :

6.00mm x 6.00mm

Termination Type :

Solder

Mounting Feature :

SURFACE MOUNT-STRAIGHT

Switch Type :

PUSHBUTTON SWITCH

Electrical Life :

1000000 Cycle(s)
