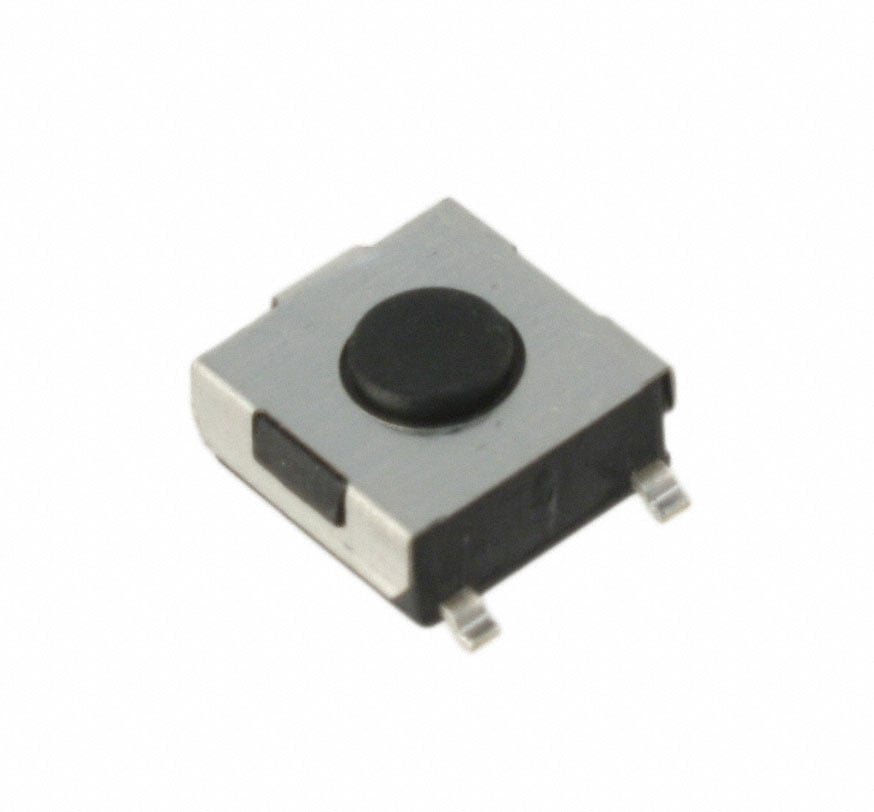

FSM1LPTR
Or copy the link below:
- Mfr.Part #
- FSM1LPTR
- Manufacturer
- TE Connectivity ALCOSWITCH Switches
- Package / Case
- SMD/SMT
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 24V
- Stock
- 3,934
- In Stock ：
- 3,934
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity ALCOSWITCH Switches
- Product Category :
- Contact Function :
- OFF-(ON)
- Throw Configuration :
- SPST
- Orientation :
- Straight
- Mount :
- Surface Mount
- Mounting Type :
- Surface Mount
- Bushing Diameter :
- 0.118 inch
- Switch Function :
- Off-Mom
- Additional Feature :
- LOW PROFILE
- Actuator Height off PCB, Vertical :
- 3.10mm
- End Contact Material :
- COPPER ALLOY
- Contact Current(DC)-Max :
- 0.05A
- Actuator Color :
- Black
- Published :
- 2004
- Voltage - Rated DC :
- 24V
- Contact Resistance :
- 100MOhm
- Packaging :
- Tape and Reel (TR)
- Mechanical Life :
- 100,000 Cycles
- Terminal Material :
- COPPER ALLOY
- PCB Hole Count :
- 5
- Termination Style :
- Gull wing
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Type :
- Switch
- Contact Current(AC)-Max :
- 0.05A
- Electrical Life :
- 100000 cycles
- Contact Plating :
- Silver
- Packing Method :
- Tape and Reel
- Factory Lead Time :
- 11 Weeks
- Housing Material :
- Cu Alloy
- Body Height :
- 2.5908mm
- Actuator Material :
- Polyphthalamide (PPA)
- Outline :
- 6.00mm x 6.00mm
- Illumination :
- Non-Illuminated
- Contact Rating @ Voltage :
- 0.05A @ 24VDC
- HTS Code :
- 8536.50.90.31
- Lead Free :
- Lead Free
- Actuator Type :
- Standard
- Insulation Material :
- POLYPHENYLENE SULPHIDE
- Max Voltage Rating (DC) :
- 12V
- RoHS Status :
- RoHS Compliant
- Actuator Orientation :
- Top Actuated
- Body Color :
- Black
- Switch Travel :
- 0.25mm
- Actuator Length :
- 254μm
- Operating Temperature :
- -35°C~85°C
- Contact (DC) Max Rating R Load :
- 0.05A@24VDC
- Termination :
- Gull wing
- Package / Case :
- SMD/SMT
- Voltage - Rated AC :
- 24V
- Current Rating :
- 50mA
- Body Length or Diameter :
- 5.9944mm
- Series :
- FSM1LP
- Insulation Resistance :
- 100000000Ohm
- Pbfree Code :
- yes
- Body Breadth :
- 6.1976 mm
- Contact Current Rating :
- 50mA
- ECCN Code :
- EAR99
- Circuit :
- SPST-NO
- Center Contact Material :
- COPPER ALLOY
- REACH SVHC :
- Unknown
- Dielectric Withstanding Voltage :
- 500VAC V
- Illumination Type :
- Illuminated, Non-Illuminated
- Operating Force :
- 160gf
- Datasheets
- FSM1LPTR
FSM1LPTR Documents
FSM1LPTR datasheet pdf and Tactile Switches product details from TE Connectivity ALCOSWITCH Switches stock available at
