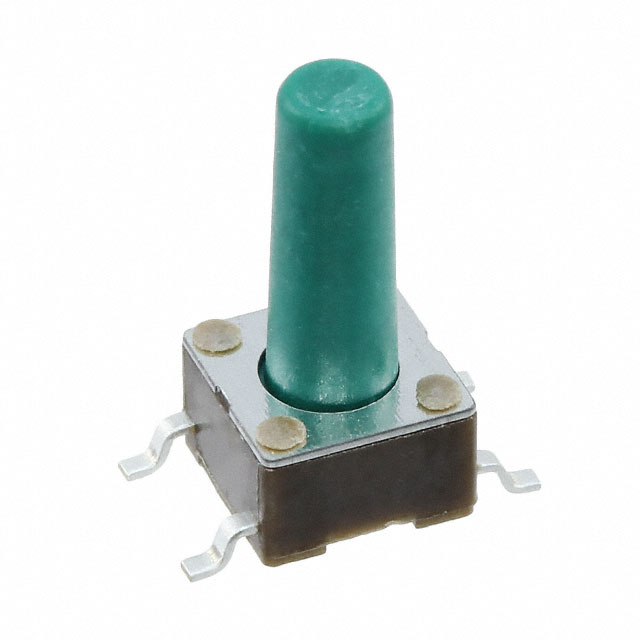

FSM14JSMAS
Or copy the link below:
- Mfr.Part #
- FSM14JSMAS
- Manufacturer
- TE Connectivity ALCOSWITCH Switches
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 24V
- Stock
- 21,304
- In Stock ：
- 21,304
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity ALCOSWITCH Switches
- Product Category :
- Product Status :
- Active
- Illumination Type :
- Not Required
- Body Orientation :
- Straight
- Contact Material :
- Stainless Steel
- Outline :
- 6.00mm x 6.00mm
- Switch Function :
- Off-Mom
- Switch Travel :
- 0.25mm
- Termination Style :
- Gull wing
- Actuator Orientation :
- Top Actuated
- Actuator Style :
- Round Button
- Mounting Style :
- Surface Mount
- Package :
- Bulk
- Circuit :
- SPST-NO
- Switch Function Configuration :
- OFF ON
- Ingress Protection :
- --
- Pole Throw Configuration :
- SPST
- Base Product Number :
- FSM14JSM
- Current Rating (Max) :
- 0.05(A)
- Operating Force :
- 2.55(N)
- Features :
- --
- Mounting Type :
- Surface Mount
- Actuator Color :
- Green
- Illumination Type, Color :
- --
- Contact Plating :
- Silver
- Operating Temperature :
- -40°C ~ 105°C
- Mechanical Life :
- 1000000
- Product Height (mm) :
- 13.1(mm)
- Operating Temp Range :
- -40C to 105C
- Illumination :
- Non-Illuminated
- Type :
- Micro-Miniature
- Product Type :
- Pushbutton Switches
- Subcategory :
- Switches
- Product Depth (mm) :
- 10(mm)
- Actuator Material :
- Polyamide (PA), Nylon
- Voltage Rating (VDC) :
- 24(V)
- Actuator Length (mm) :
- 9.4(mm)
- Number of Positions :
- 2
- Actuator Height off PCB, Vertical :
- 13.00mm
- Actuator Type :
- Standard
- Contact Rating @ Voltage :
- 0.05A @ 24VDC
- Product Length (mm) :
- 6(mm)
- Packaging :
- Bulk
- Illumination Voltage (Nominal) :
- --
- Terminal Type :
- Gull wing
- RoHS :
- Non-Compliant
- Actuator Length, Right Angle :
- --
- Series :
- FSMJSMA
- Datasheets
- FSM14JSMAS
